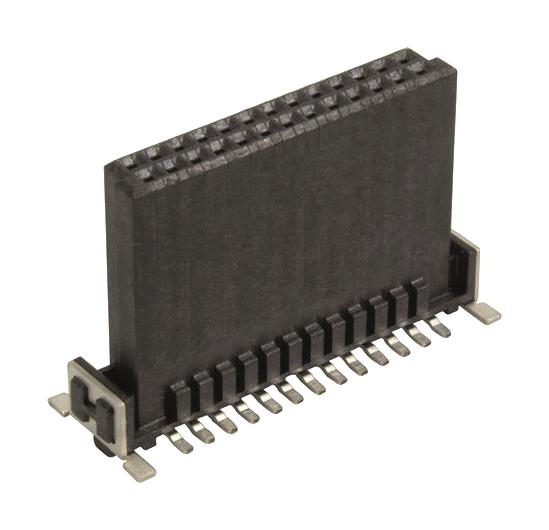

Harting 15230322601000 Female Stackable Connector
The har-flex straight female connector features stackable design with heights of 6.25mm, 9.05mm, and 13.65mm, accommodating from 6 to 100 poles with even numbers. Made from black liquid crystalline polymer insulation material, UL94-VO rated, and a copper alloy contact material with Sn and Au over PdNi plating for durability. Suitable for PCB mounting with lead-free compatible pads, these connectors support high voltage, low contact resistance, and are RoHS compliant. They withstand temperatures from -55°C to +125°C and are tested for coplanarity and multiple mating cycles, suitable for industrial applications requiring reliable connections.
Harting 15230322601000 Female Stackable Connector Specifications:
- Stacking heights: 6.25mm, 9.05mm, 13.65mm
- Number of poles: 6 to 100, even numbers
- Contact spacing: 1.27mm x 1.27mm (0.050" x 0.050")
- Working voltage: 500V (up to 100V/150V depending on installation category)
- Contact resistance: Less than 25 mOhm
- Current capacity: Approximate 10A to 15A depending on model and wire size
- Working temperature range: -55°C to +125°C
- Reflow soldering temperature: > 217°C for 150s, > 240°C for 30s
- Material: LCP (liquid crystalline polymer), black, UL94-VO rated
- Contact material: Copper alloy with Sn and Au over PdNi plating
- Insulation: RoHS compliant, lead-free solderable on HAL, NiAu, Immersion Sn pads
- Coplanarity range: 0.1mm to < 0.145mm depending on pin count
- Mating cycles: 150 initial, 250 for PL1, 125 for PL2, 100 for performance level 4
- Test voltage: 500V for insulation, 100V/150V depending on installation
- Termination technology: SMT (Surface Mount Technology)
Buy the HARTING har-flex female connector – Reliable PCB Connectors for Industrial Applications
Enhance your electronic assembly with our female stackable connector, designed for durability and high performance. Featuring stack heights of 6.25mm, 9.05mm, and 13.65mm, it supports up to 100 poles, ideal for industrial, automation, and control systems. Made from UL94-VO rated LCP material, with copper alloy contacts plated with Sn and Au over PdNi, ensuring excellent conductivity and corrosion resistance. It withstands temperatures from -55°C to +125°C, supports up to 150 mating cycles, and is RoHS compliant. Purchase online now for quick, reliable, and high-quality connections in your projects.
Buy HARTING har-flex female connector now and experience unmatched reliability with stackable design, high voltage capacity, and temperature resilience.
