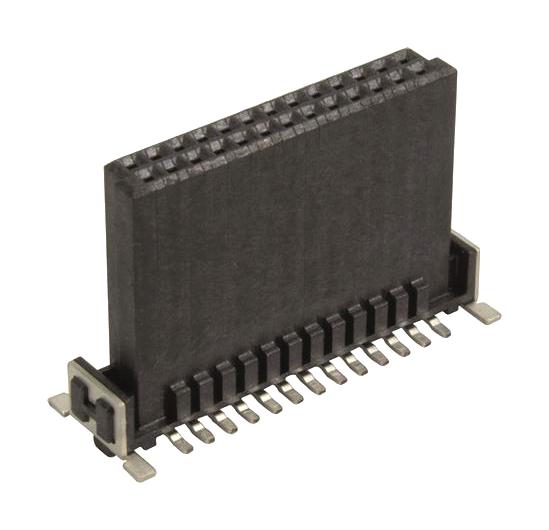

Harting 15230402601000 female connector
The har-flex straight female connector is a compact, RoHS-compliant electronic component designed for reliable soldering on lead-free PCB surfaces such as HAL, NiAu, and Immersion Sn. It features multiple contact configurations from 6 to 100 poles with even numbers, stacking heights of 6.25mm, 9.05mm, and 13.65mm, and a contact spacing of approximately 1.27mm. Made from liquid crystalline polymer with copper alloy contacts plated with Sn and Au over PdNi, it withstands -55°C to +125°C temperatures, supports up to 500 mating cycles, and is suitable for SMT reflow processes at temperatures above 217°C. The connectors meet IEC, UL, CSA, and RoHS standards, ensuring safety and durability in various electronic applications.
Harting 15230402601000 female connector Specifications:
- Number of contacts: 6 to 100, all even numbers
- Stacking height options: 6.25mm, 9.05mm, 13.65mm
- Contact spacing: approximately 1.27mm
- Material: Liquid crystalline polymer UL94-VO, black
- Contact material: Copper alloy with Sn plating on termination zone, Au over PdNi on contact sliding side
- Working temperature: -55°C to +125°C
- Reflow processing temperature: min. 217°C for > 150s, min. 240°C for > 30s
- Solderable on lead-free pads: HAL, NiAu, immersion Sn
- Electrical ratings: 500V, 100V/150V depending on installation category
- Contact resistance: <25 mOhm
- Mating cycles: 250 to 500 depending on performance level
- Insulation resistance: >10^4 MΩ
- Test voltage: 500V
- Coplanarity: 0.1mm to 0.145mm depending on pin count
- UL and CSA certification: Yes
- RoHS compliant, lead-free
