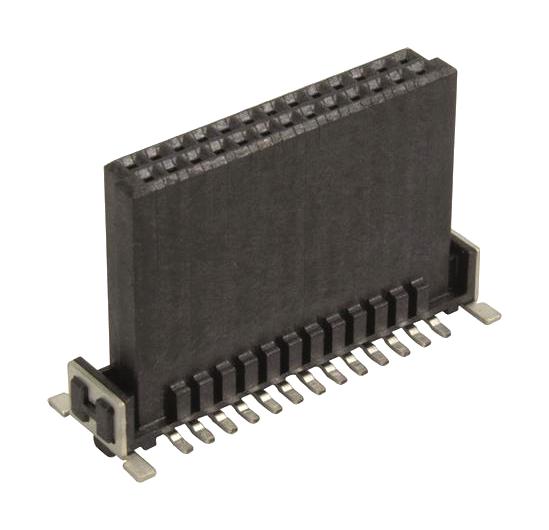

Harting 15230802601000 female connector
The connector is a high-performance, straight female Har-Flex connector designed for reliable soldering on lead-free PCB surfaces like HAL, NiAu, and immersion Sn. It supports stacking heights of 6.25mm, 9.05mm, and 13.65mm, with a variety of pole counts from 6 to 100. Made from UL94-VO rated liquid crystalline polymer insulator material in black, it features copper alloy contacts with Sn plating for termination and Au over PdNi sliding contact. It is RoHS compliant, suitable for use in industrial and electronic applications, with excellent durability for up to 500 mating cycles at performance level 1.
Harting 15230802601000 female connector Specifications:
- Number of contacts: 6 to 100 poles (even numbers only)
- Contact spacing: 1.27 mm x 1.27 mm (for smaller pole counts), larger for higher counts
- Test Voltage: 500V
- Contact resistance: less than 25 mOhm
- Insulation resistance: 10^4 90 Ohm
- Working current: Based on derating diagram, up to 2A per contact
- Working temperature: -55°C to +125°C
- Termination technology: Soldering on lead-free surfaces like HAL, NiAu, immersion Sn
- Reflow processing temperature: min. 150s at > 217°C, min. 30s at > 240°C
- Working voltage: 100V / 150V (depending on installation category)
- Material: Liquid crystalline polymer insulator, black color, UL94-VO
- Contact material: Copper alloy, plated with Sn (termination), Au over PdNi (sliding contact)
- COPLANARITY of contacts: 6 pin to 80 pin: 0.1mm, 82 pin to 100 pin: < 0.145mm
- Mating cycles: Up to 500 cycles at performance level 1
- Stacking height options: 6.25mm, 9.05mm, 13.65mm
- Packaging: Tape and reel per IEC 60286-3
