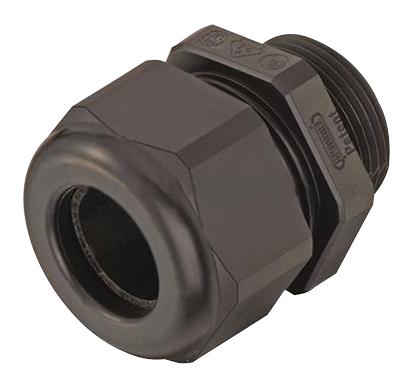

Harting 19000005193 CGM-P Cable Gland
The HARTING Han CGM-P M25x1,5 D.13-18mm cable gland is designed for robust and reliable cable connections in industrial environments. Constructed from polyamide (PA) with a NBR seal, it offers excellent protection against dust and moisture, achieving IP68 and IP69/IPX9K ratings. Its clamping range of 13-18mm accommodates various cable sizes, and the V-0 flammability rating ensures safety. This cable gland is ideal for applications requiring a secure and sealed connection, such as in machinery, automation systems, and power distribution.
Harting 19000005193 CGM-P Cable Gland Specifications:
- Tightening torque: ≤5 Nm (depending on the cable and the seal insert used)
- Wrench size: 33
- Limiting temperature: -40 ... +100 °C
- Degree of protection IEC 60529: IP68
- Degree of protection ISO 20653: IP69 / IPX9K
- Size: M25
- Clamping range: 13 ... 18 mm
- Width across corners: 36.5 mm
- Material (seal): NBR
- Material (cable glands): Polyamide (PA)
- Colour (accessories): RAL 9005 (jet black)
- Material flammability class UL 94: V-0
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: Not contained
- REACH Annex XIV substances: Not contained
- REACH SVHC substances: Not contained
- Approvals: DNV GL
- UL / CSA: UL 514B QCRV.E479780
- CSA-C22.2: QCRV7.E479780
- Packaging size: 10
- Net weight: 23 g
- Country of origin: Germany
- European customs tariff number: 39269097
- eCl@ss: 27144432
