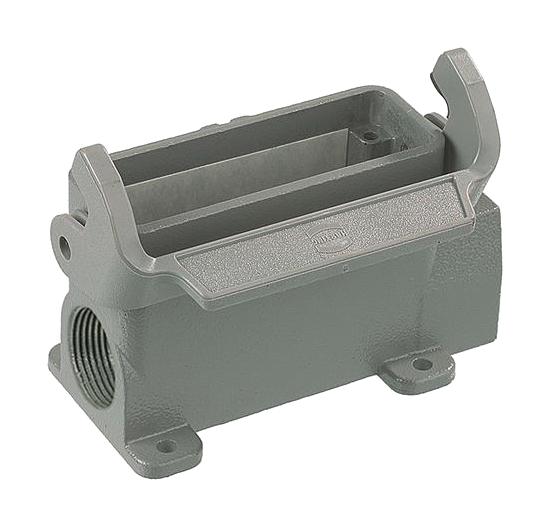

Harting 19200160290 Han 16A Housing Lever
The HARTING Han 16A-HSM-HC 1 Lever 2xM20 is a surface-mounted housing designed for industrial applications requiring a robust and sealed connection. Constructed from aluminum die-cast with a powder-coated finish, it offers excellent protection against environmental factors. The housing incorporates a single locking lever for secure cable retention and features two M20 cable entries to accommodate various cable sizes. It is suitable for standard industrial hood/housing applications and is rated to IP65 for dust and water protection, with UL and CSA approvals ensuring compliance with North American standards. The housing also includes polycarbonate (PC) locking components and is compliant with RoHS and ELV directives. Please note REACH SVHC substances are present.
Harting 19200160290 Han 16A Housing Lever Specifications:
- Part Number: 19 20 016 0290
- Specification: Han 16A-HSM-HC 1 Lever 2xM20
- Series of hoods/housings: Han A®
- Type of hood/housing: Surface mounted housing
- Type: Low construction
- Size: 16 A
- Version: Side entry
- Cable entry: 2x M20
- Locking type: Single locking lever
- Han-Easy Lock®: Yes
- Field of application: Standard Hoods/housings for industrial applications
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL 50 / UL 50E: 4X
- Material (hood/housing): Aluminium die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (locking): Polycarbonate(PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Flammability class UL 94: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65 substances: Nickel
- Approvals: DNV GL
- UL / CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 187.7 g
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
