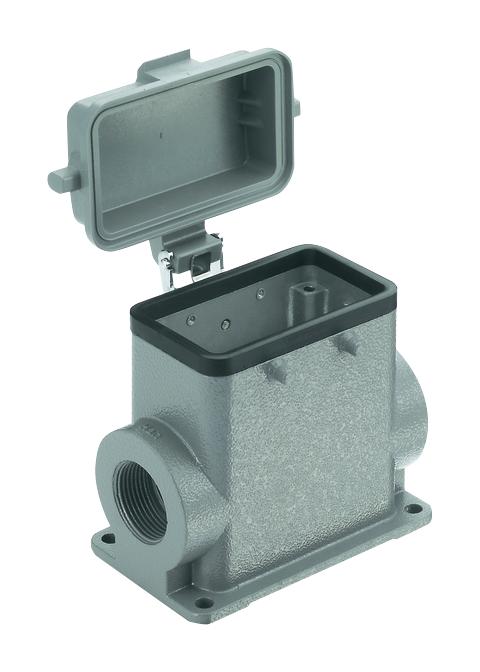

Harting 19300100266 Han 10B Housing Connector
The HARTING Han 10B-asg2-K-M25 is a robust surface-mounted housing designed for industrial connector applications. Constructed from aluminum die-cast and powder-coated with RAL 7037 (dust grey) finish, it provides excellent durability and corrosion resistance. Featuring a double locking lever for secure connections and an IP65 degree of protection, this housing is suitable for harsh environments. It accommodates two M25 cable entries and is ideal for applications requiring a high-construction, reliable connector solution.
Harting 19300100266 Han 10B Housing Connector Specifications:
- Series: Han®B
- Type: Surface mounted housing
- Description: With thermo-plastic cover
- Construction Type: High construction
- Size: 10 B
- Version: Side entry
- Cable Entry: 2x M25
- Locking Type: Double locking lever
- Limiting Temperature: -40 ... +125 °C
- Degree of Protection: IP65
- Type Rating UL: 4X, 12
- Material (hood/housing): Aluminum die-cast
- Surface (hood/housing): Powder-coated
- Color (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- RoHS Compliant: Yes
- ELV Compliant: Yes
- China RoHS: e
- REACH Annex XVII Substances: Not contained
- REACH Annex XIV Substances: Not contained
- REACH SVHC Substances: Yes
- REACH SVHC Substance Details: 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
- California Proposition 65 Substances: Yes
- California Proposition 65 Substance Details: Nickel, Naphthalene
- Approvals: DNV GL
- CE: Yes
- Packaging Size: 1
- Net Weight: 373.8 g
- Country of Origin: Germany
- Customs Tariff Number: 85389099
- eCl@ss: 27440202
Buy the 19300100266 HARTING Han 10B Housing Connector | myMectronic
Purchase the HARTING Han 10B-asg2-K-M25 connector housing securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Harting 19300100266?
You can click on the BUY or RFQ button to purchase 19300100266 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 19300100266?
You can download the 19300100266 datasheet or visit the Harting website for support.
Who is the manufacturer of 19300100266?
Harting
