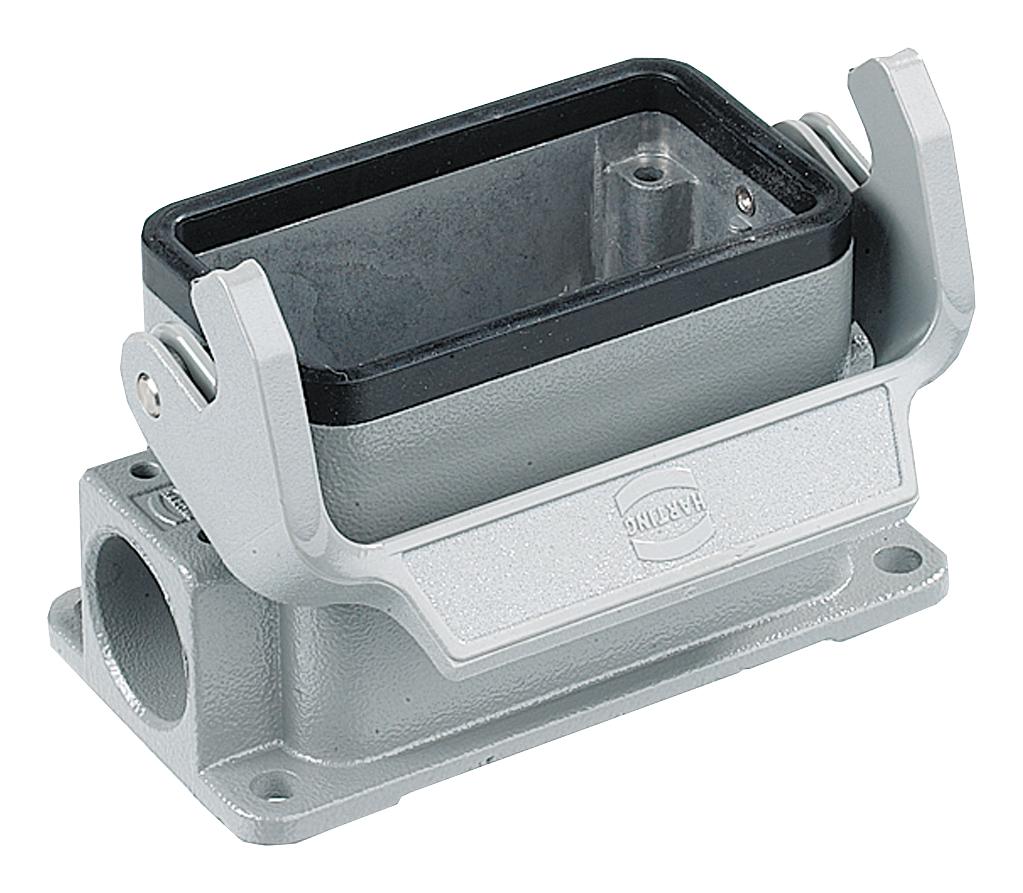

Harting 19302161291 High Cycle Industrial Connector
The Harting part number 19302161291 features a Han® B HMC side entry connector with a 16B size and low construction housing, suitable for demanding industrial applications. Made from die-cast aluminum with a dust grey powder coating, it includes a stainless steel locking element and NBR seals for durability and sealing. The connector boasts IP65 protection, UL 50/50E approval, and supports over 210,000 mating cycles. Operating from -40°C to +125°C, it ensures high performance in harsh environments, featuring a single lever lock for ease of use and reliability.
Harting 19302161291 High Cycle Industrial Connector Specifications:
- Material (hood/housing): Die-cast aluminum
- Color (hood/housing): RAL 7037 grey
- Material (seal): NBR
- Material (locking): Stainless steel
- Protection Degree: IP65
- Operating Temperature Range: -40°C to +125°C
- Mating Cycles: >210,000
- Cable Entry: 2x M25
- Locking System: Single lever lock (Han-Easy Lock®)
- Material Flammability Class: V-0
- Approvals: UL 50 / UL 50E
- Net Weight: 264.5 g
- Country of Origin: Germany
- Certification: DNV GL
Buy the HARTING Series HAN: Industrial High Cycle Connector 19302161291
Experience reliability and durability with the HARTING high cycle industrial connector. Designed for harsh environments, it features a robust aluminum housing, stainless steel lock, and NBR seals. Its IP65 protection level guarantees resistance against dust and water ingress, while the high mating cycle capability ensures long-term performance in demanding applications. Easy to install with a single lever lock and suitable for various industrial systems, this connector offers unmatched quality, safety, and efficiency for your critical operations. Buy online now to enhance your industrial connections.
Order your HARTING Series HAN high-mating cycle connector today and ensure reliable, durable connections for your industrial projects.
Frequently Asked Questions
Where can I buy Harting 19302161291?
You can click on the BUY or RFQ button to purchase 19302161291 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 19302161291?
You can download the 19302161291 datasheet or visit the Harting website for support.
Who is the manufacturer of 19302161291?
Harting
