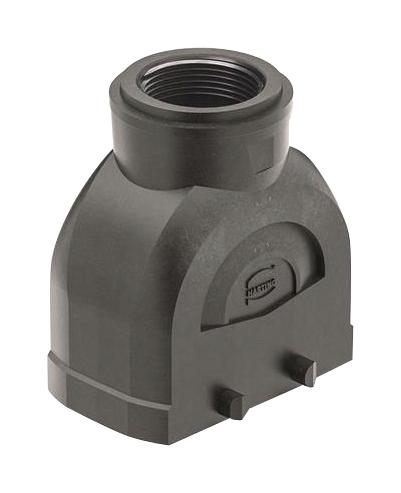

Harting 19430100425 Enclosure
The Han-Eco B series housing is a durable, high-performance plastic enclosure designed for indoor and outdoor applications, providing IP66 protection against dust and water. Made from fibre-glass reinforced polyamide in classic RAL 9005 black, it offers excellent resistance to harsh environments and complies with IEC 61984 and EN 45545-2 standards for fire and flame safety. Featuring a double locking lever, top entry with M20 cable gland, and a temperature range of -40°C to +125°C, it is ideal for industrial data, signal, and power module installations where robustness and versatility are essential.
Harting 19430100425 Enclosure Specifications:
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Colour: RAL 9005 black
- Flammability Class: V-0 according to UL 94
- Protection Degree: IP66 conforming to IEC 60529
- Temperature Range: -40°C to +125°C
- Cable Entry: 1x M20 top entry
- Limiting Temperature: -40°C to +125°C
- Number of relockings: 2500
- Materials and Standards: IEC 61984, EN 45545-2 R22, R23, R24 (HL1, HL2, HL3)
- Dimensions: Not specified (fits M20 cable glands)
- Packaging Size: 1079 units per pallet
- Net Weight: Approximately 1.079 kg
- Approvals & Certifications: IEC standards, EN 45545-2 fire safety
Buy the HARTING Series Han-Eco B Enclosures: 19 43 010 0425
Order the HARTING Han-Eco 10B-HTE-for DL-M20 enclosure online today to benefit from high IP66 protection and flame-retardant polyamide construction. This durable enclosure features a double locking lever, top entry with M20 cable gland, and broad temperature compatibility from -40°C to +125°C, making it ideal for industrial, data, and power applications. With excellent resistance to harsh environments, IEC and EN standards compliance, and efficient rear mounting design, this housing offers versatile, reliable protection for demanding deployment needs, shipped quickly for your convenience.
Buy HARTING Han-Eco 10B-HTE-for DL-M20 enclosure now and ensure reliable, flame-retardant protection for industrial and outdoor setups.
Frequently Asked Questions
Where can I buy Harting 19430100425?
You can click on the BUY or RFQ button to purchase 19430100425 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 19430100425?
You can download the 19430100425 datasheet or visit the Harting website for support.
Who is the manufacturer of 19430100425?
Harting
