Harting 19431100252 Industrial Enclosure

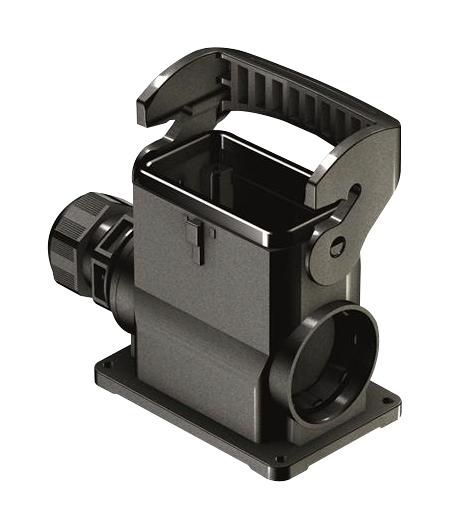

The Han-Eco 10B-HSM1 with SL-M32 gland is a robust, IP66-rated housing with a side entry cable gland, designed for industrial applications. Made from fibre-glass reinforced polyamide, it features a single locking lever for secure closure and operates reliably from -40°C to +125°C. Its flame-retardant material meets UL 94 V-0 standards, ensuring fire safety. Suitable for demanding environments, this housing complies with IEC 61984 and EN 45545-2 standards, offering durable, reliable protection and safe cable entry for control and automation systems.
Harting 19431100252 Industrial Enclosure Specifications:
- Material (hood/housing): Fibre-glass reinforced polyamide
- Colour (hood/housing): RAL 9005 jet black
- Material (seal): NBR
- Colour (seal): RAL 9005 black
- Material (locking): Polyamide
- Colour (locking): RAL 9005 jet black
- Flammability class: V-0 according to UL 94
- Degree of protection: IP66
- Cable entry: 1x M32 side entry
- Limiting temperature: -40 to +125°C
- Number of relockings: 2500
- Dimensions: Clamping range 3 to 21mm
- Material: Fibre-glass reinforced polyamide
- Surface: Surface mounted housing
- Standards: IEC 61984, EN 45545-2 R22/23/24 HL1-3
- Operating temperature: -40°C to +125°C
- Protection class: IP66
Buy the HARTING Series Han-Eco Industrial Housing: 19 43 110 0252
Order the HARTING Han-Eco 10B-HSM1 housing online today for a robust, IP66-rated enclosure with flexible M32 cable gland, flame-retardant polyamide construction, and high durability for demanding industrial applications. Designed to operate reliably from -40°C to +125°C, it features a single locking lever for secure closure and meets international safety standards like IEC 61984 and EN 45545-2. Perfect for automation, control systems, or industrial installations, ensuring long-lasting protection and easy assembly.
Get HARTING Han-Eco 10B-HSM1 housing with M32 gland today—built for durability and reliable cable entry in industrial environments.
