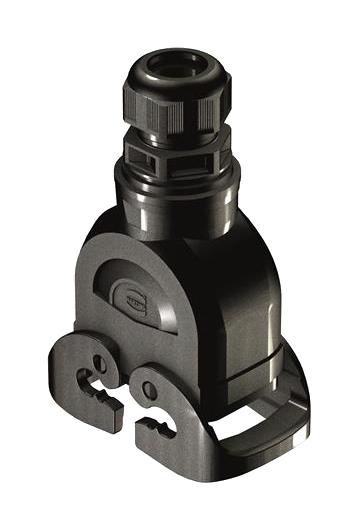

Harting 19431100736 Han-Eco Cable Housing
The HARTING Han-Eco 10B-HCC cable housing is designed for demanding industrial applications requiring a robust and environmentally protected connection. Constructed from fiber-glass reinforced polyamide, it offers excellent mechanical strength and chemical resistance. The integrated M25 cable gland allows for secure and sealed cable termination, while the double locking lever ensures a reliable connection. This housing is ideal for use in machinery, automation systems, and other industrial environments where protection from dust, moisture, and vibration is critical. It meets stringent industry standards including EN 45545-2 for railway applications, ensuring safety and reliability in critical environments.
Harting 19431100736 Han-Eco Cable Housing Specifications:
- Part Number: 19 43 110 0736
- Specification: Han-Eco 10B-HCC-with DL-M25-glanded
- Series of hoods/housings: Han-Eco®B
- Type of hood/housing: Cable to cable housing
- Description of hood/housing: With integrated cable gland
- Locking type: Double locking lever
- Size: 10 B
- Version: Top entry
- Cable entry: 1x M25
- Limiting temperature: -40 ... +125 °C
- Number of relockings: ≥500
- Degree of protection: IP66
- Clamping range: 9 ... 17 mm
- Material (hood/housing): Polyamide(PA), Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): NBR
- Colour (seal): RAL 9005 (jet black)
- Material (locking): Polyamide(PA), Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Flammability class UL 94: V-0
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Packaging size: 1
- Country of origin: Germany
- European customs tariff number: 85389099
- eCl@ss: 27440202
