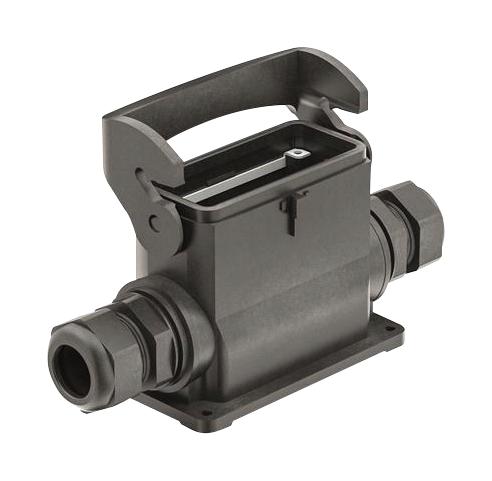

Harting 19431160291 Han-Eco Housing with Gland
The HARTING Han-Eco 16B-HSM2-with SL-M25-glanded housing is a surface-mounted connector designed for demanding industrial applications. Constructed from fiber-glass reinforced polyamide, it offers excellent durability and protection against environmental factors. The integrated cable gland simplifies cable installation and provides a secure, sealed connection. Its robust design and IP66 rating make it suitable for use in harsh environments, ensuring reliable performance and long-term reliability. Complies with EN 45545-2 R22, R23, and R24 standards.
Harting 19431160291 Han-Eco Housing with Gland Specifications:
- Part Number: 19 43 116 0291
- Specification: Han-Eco 16B-HSM2-with SL-M25-glanded
- Category: Hoods/Housings
- Series: Han-Eco®B
- Type: Surface mounted housing
- Description: With integrated cable gland
- Locking Type: Single locking lever
- Size: 16 B
- Version: Side entry
- Cable Entry: 2x M25
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 9 ... 17 mm
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Color (hood/housing): RAL 9005 (jet black)
- Material (seal): NBR
- Color (seal): RAL 9005 (jet black)
- Material (locking): Polyamide, Fibre-glass reinforced
- Color (locking): RAL 9005 (jet black)
- Flammability Class: V-0
- Packaging Size: 1
- Country of Origin: Germany
- Customs Tariff Number: 85389099
- IEC Specification: IEC 61984
- EN Specification 1: EN 45545-2 R22
- EN Specification 2: EN 45545-2 R23
- EN Specification 3: EN 45545-2 R24
Buy the 19431160291 HARTING Han-Eco Housing with Gland | myMectronic
Purchase the HARTING Han-Eco 16B-HSM2 connector housing with confidence, knowing you're getting a genuine part backed by our secure online platform.
Buy Now
Frequently Asked Questions
Where can I buy Harting 19431160291?
You can click on the BUY or RFQ button to purchase 19431160291 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 19431160291?
You can download the 19431160291 datasheet or visit the Harting website for support.
Who is the manufacturer of 19431160291?
Harting
