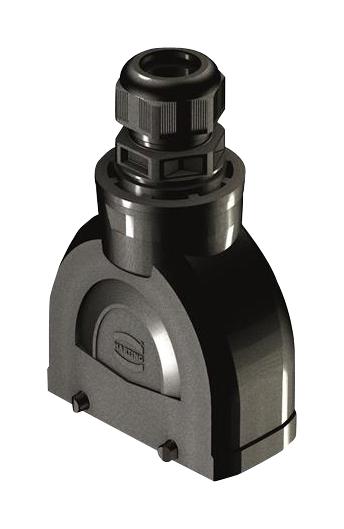

Harting 19431160426 Han-Eco Hood with Gland
The HARTING Han-Eco 16B-HTE-for DL-M25-glanded hood is designed for robust and reliable cable connections in industrial applications. Constructed from fibre-glass reinforced polyamide, it offers excellent mechanical strength and chemical resistance. The integrated M25 cable gland simplifies installation and provides a secure seal against environmental factors. This hood is suitable for applications requiring high protection levels and is compliant with EN 45545-2 R22, R23, and R24 standards, making it ideal for railway and transportation systems. Its double locking lever ensures secure connections, and the V-0 flammability rating enhances safety.
Harting 19431160426 Han-Eco Hood with Gland Specifications:
- Part Number: 19 43 116 0426
- Specification: Han-Eco 16B-HTE-for DL-M25-glanded
- Locking Type: Double locking lever
- Size: 16 B
- Version: Top entry
- Cable Entry: 1x M25
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 9 ... 17 mm
- Material (Hood/Housing): Polyamide, Fibre-glass reinforced
- Colour (Hood/Housing): RAL 9005 (jet black)
- Flammability Class: V-0
- Packaging Size: 1
- Net Weight: 173.5 g
- Country of Origin: Germany
- Customs Tariff Number: 85389099
- IEC Standards: IEC 61984
- EN Standards: EN 45545-2 R22, HL1, HL2, HL3; EN 45545-2 R23, HL1, HL2, HL3; EN 45545-2 R24, HL1, HL2, HL3
