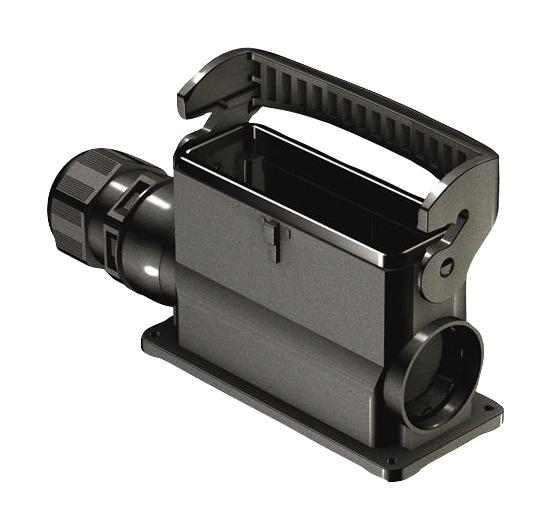

Harting 19431240253 Han-Eco 24B Housing
The HARTING Han-Eco 24B-HSM1-with SL-M40-glanded housing is a robust and reliable solution for industrial connector applications. Designed for surface mounting, this housing incorporates an integrated cable gland for simplified cable management and a secure connection. It offers IP66 protection, safeguarding against dust and water ingress, and is constructed from fiber-glass reinforced polyamide for enhanced durability. Suitable for a wide range of industrial environments, the Han-Eco 24B housing meets stringent safety standards including EN 45545-2 R22, R23, and R24, making it ideal for applications requiring high levels of safety and performance. Its single locking lever design ensures ease of use and secure connections.
Harting 19431240253 Han-Eco 24B Housing Specifications:
- Part Number: 19 43 124 0253
- Specification: Han-Eco 24B-HSM1-with SL-M40-glanded
- Category: Hoods/Housings
- Series: Han-Eco®B
- Type: Surface mounted housing
- Description: With integrated cable gland
- Locking Type: Single locking lever
- Size: 24 B
- Version: Side entry
- Cable Entry: 1x M40
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 16 ... 28 mm
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): NBR
- Colour (seal): RAL 9005 (jet black)
- Material (locking): Polyamide, Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Flammability Class: V-0
- Packaging Size: 1
- Country of Origin: Germany
- Customs Tariff Number: 85389099
- IEC Specification: IEC 61984
- EN Specification 1: EN 45545-2 R22
- EN Specification 2: EN 45545-2 R23
- EN Specification 3: EN 45545-2 R24
