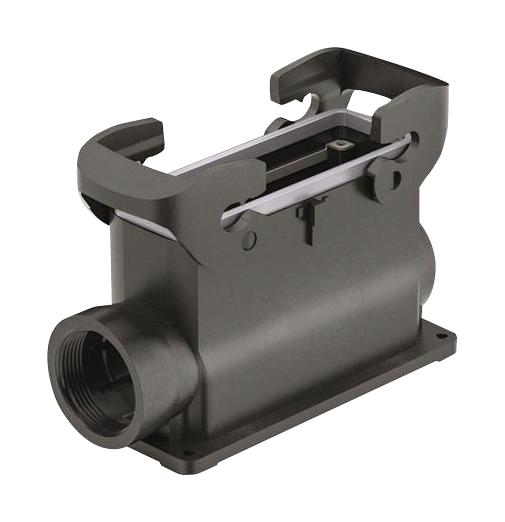

Harting 19432240232 Han-Eco 24B Outdoor Housing
The HARTING Han-Eco 24B Outdoor Housing is designed for demanding industrial environments requiring a secure and protected connection. Constructed from fiber-glass reinforced polyamide, this surface-mounted housing offers excellent durability and resistance to environmental factors. Its double locking lever mechanism ensures a reliable connection, while the M32 cable entry accommodates various cable sizes. The housing is IP66 rated, providing protection against dust and water ingress. It meets IEC 61984 specifications and EN 45545-2 R22, R23, and R24 standards, making it suitable for use in railway applications and other critical infrastructure.
Harting 19432240232 Han-Eco 24B Outdoor Housing Specifications:
- Part Number: 19 43 224 0232
- Specification: Han-Eco 24B Outd-HSM1-with DL-M32
- Locking Type: Double locking lever
- Size: 24 B
- Version: Side entry
- Cable Entry: 1x M32
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): FPM
- Colour (seal): RAL 7001 (silver-grey)
- Material (locking): Polyamide, Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Flammability Class UL 94: V-0
- IEC 61984 Specifications: Compliant
- EN 45545-2 R22: HL1, HL2, HL3
- EN 45545-2 R23: HL1, HL2, HL3
- EN 45545-2 R24: HL1, HL2, HL3
- Packaging Size: 1
- Country of Origin: Germany
- European Customs Tariff Number: 85389099
