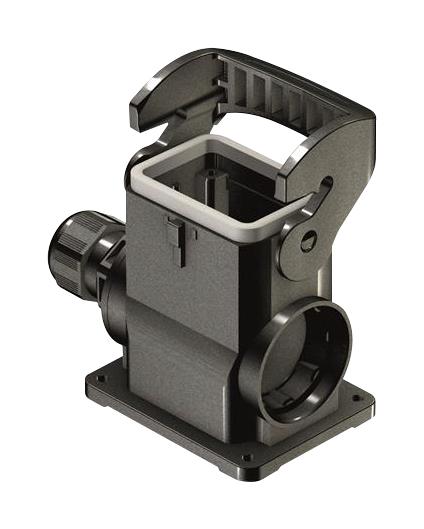

Harting 19433060251 Han-Eco 6B Outdoor Housing
The HARTING Han-Eco 6B Outdoor Housing is a surface-mounted connector housing designed for demanding industrial applications requiring robust and reliable connections. It incorporates an integrated cable gland for easy and secure cable termination. The housing is constructed from fibre-glass reinforced polyamide, providing excellent mechanical strength and chemical resistance. It offers IP66 protection, ensuring resistance to dust and water ingress, and is suitable for applications in harsh environments. The Han-Eco series is known for its durability and ease of use, making it a popular choice for a wide range of industrial automation, power distribution, and data transmission applications.
Harting 19433060251 Han-Eco 6B Outdoor Housing Specifications:
- Part Number: 19 43 306 0251
- Specification: Han-Eco 6B Outd-HSM1-with SL-M25-glanded
- Locking Type: Single locking lever
- Size: 6 B
- Version: Side entry
- Cable Entry: 1x M25
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 9 ... 17 mm
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): FPM
- Colour (seal): RAL 7001 (silver-grey)
- Material (locking): Polyamide, Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Flammability Class: V-0
- Packaging Size: 1
- Country of Origin: Germany
- Customs Tariff Number: 85389099
- IEC Specifications: IEC 61984
- EN 45545-2 R22: HL1, HL2, HL3
- EN 45545-2 R23: HL1, HL2, HL3
- EN 45545-2 R24: HL1, HL2, HL3
Buy the 19433060251 HARTING Han-Eco 6B Outdoor Housing | myMectronic
Purchase the HARTING 19433060251 Han-Eco 6B Outdoor Housing securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Harting 19433060251?
You can click on the BUY or RFQ button to purchase 19433060251 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 19433060251?
You can download the 19433060251 datasheet or visit the Harting website for support.
Who is the manufacturer of 19433060251?
Harting
