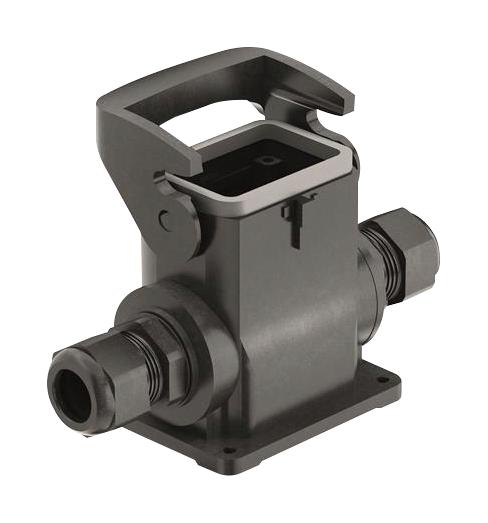

Harting 19433060290 Han-Eco 6B Outdoor Housing
The HARTING Han-Eco 6B Outdoor Housing is a robust and reliable solution for protecting electrical connections in harsh outdoor environments. This surface-mounted housing is designed with an integrated cable gland for simplified installation and cable management. Its IP66 rating guarantees protection against dust and water, making it suitable for a wide range of industrial applications, including automation, renewable energy, and transportation. The housing is constructed from fiber-glass reinforced polyamide, ensuring high mechanical strength and resistance to chemicals and UV radiation. It is also compliant with EN 45545-2 fire safety standards, making it suitable for railway applications. The Han-Eco series is known for its modularity and ease of use, providing a cost-effective and efficient connection solution.
Harting 19433060290 Han-Eco 6B Outdoor Housing Specifications:
- Part Number: 19 43 306 0290
- Specification: Han-Eco 6B Outd-HSM2-with SL-M20-glanded
- Locking Type: Single locking lever
- Size: 6 B
- Version: Side entry
- Cable Entry: 2x M20
- Limiting Temperature: -40 ... +125 °C
- Number of Relockings: ≥500
- Degree of Protection: IP66
- Clamping Range: 6 ... 13 mm
- Material (hood/housing): Polyamide, Fibre-glass reinforced
- Colour (hood/housing): RAL 9005 (jet black)
- Material (seal): FPM
- Colour (seal): RAL 7001 (silver-grey)
- Material (locking): Polyamide, Fibre-glass reinforced
- Colour (locking): RAL 9005 (jet black)
- Material Flammability Class: V-0
- Packaging Size: 1
- Country of Origin: Germany
- European Customs Tariff Number: 85389099
- IEC 61984 Specifications: Compliant
- EN 45545-2 R22: HL1, HL2, HL3
- EN 45545-2 R23: HL1, HL2, HL3
- EN 45545-2 R24: HL1, HL2, HL3
