Harting 19462100301 Industrial connector housing

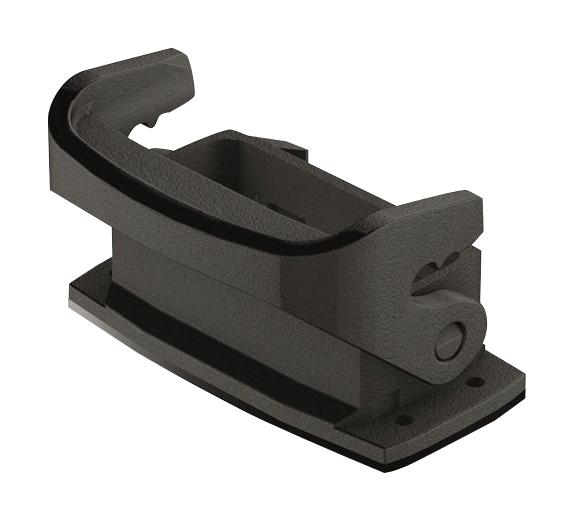

The Han-Eco Outdoor 10A-HBM is a robust, bulkhead-mounted housing designed for outdoor industrial environments. Made from fibre-glass reinforced polyamide in jet black RAL 9005, it offers IP65 protection, withstands temperatures from -40°C to +125°C, and supports a maximum current of 10A. It features a single locking lever for secure closure, complies with UL 94 V-0 flammability standards, and adheres to IEC 61984, EN 45545-2 R22/23/24 standards. Ideal for industrial applications requiring durability and reliable sealing in harsh conditions.
Harting 19462100301 Industrial connector housing Specifications:
- Material (housing): Polyamide (PA), Fibre-glass reinforced
- Color (housing): RAL 9005 (jet black)
- Material (seal): FPM
- Color (seal): RAL 7001 (silver-grey)
- Material (locking): Polyamide (PA), Fibre-glass reinforced
- Color (locking): RAL 9005 (jet black)
- Flammability class: V-0 according to UL 94
- Temperature range: -40°C to +125°C
- Degree of protection: IP65
- Rated current: 10A
- Locking type: Single locking lever
- Number of relockings: 2500
- Net weight: 59.2g
- Country of origin: Germany
Buy the HARTING Series Han-Eco Outdoor 10A-HBM: 19462100301
Order the HARTING Han-Eco Outdoor 10A-HBM connector housing online today to ensure your industrial setup is protected against the elements. With IP65 sealing, high-temperature tolerance, and a robust fibre-glass reinforced polyamide construction, it guarantees durability and safety in outdoor applications. Easily integrate it into your electrical enclosures for secure, reliable connections under demanding conditions. Fast, secure online purchasing makes it simple to upgrade your industrial equipment and keep your operations running smoothly with proven quality and performance.
Get HARTING Han-Eco Outdoor 10A-HBM today—designed for outdoor durability and reliable performance in harsh industrial environments.
