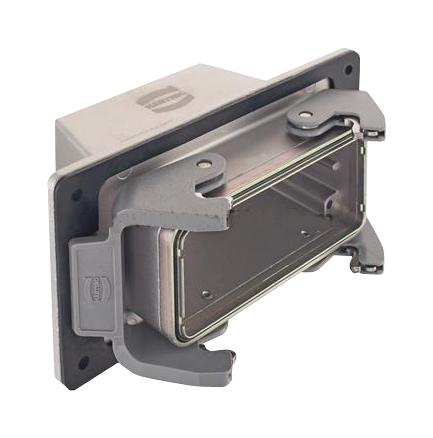

Harting 19628101121 Han 10EMC Panel Housing
The HARTING Han 10EMC/B HTE M25 PFT DL is a high-construction panel feed through housing specifically engineered to meet higher EMC requirements. Constructed from aluminum die-cast, it offers robust protection for connected components. The housing incorporates a double locking lever and Han-Easy Lock® for secure connections. It is designed with a top entry configuration and features a single M25 cable entry. Suitable for a wide range of industrial applications, this housing provides IP65 degree of protection and is rated for limiting temperatures from -40 to +125 °C. Its durable materials and robust design ensure long-lasting performance in demanding environments.
Harting 19628101121 Han 10EMC Panel Housing Specifications:
- Part Number: 19 62 810 1121
- Specification: Han 10EMC/B HTE M25 PFT DL
- Category: Hoods/Housings
- Series of hoods/housings: Han®EMC/B
- Type of hood/housing: Panel feed through housing
- Type: High construction
- Locking type: Double locking lever
- Han-Easy Lock®: Yes
- Size: 10 B
- Version: Top entry
- Cable entry: 1x M25
- Field of application: Hoods/Housings for higher EMC requirements
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL: 4
- Material (hood/housing): Aluminium die-cast
- Surface (hood/housing): Uncoated
- Colour (hood/housing): Unpainted
- Material (seal): NBR
- Material (locking): Polycarbonate, Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Material flammability class: V-0
- Approvals: DNV GL
- Packaging size: 1
- Net weight: 313.9 g
- Country of origin: China
- European customs tariff number: 8538900000
