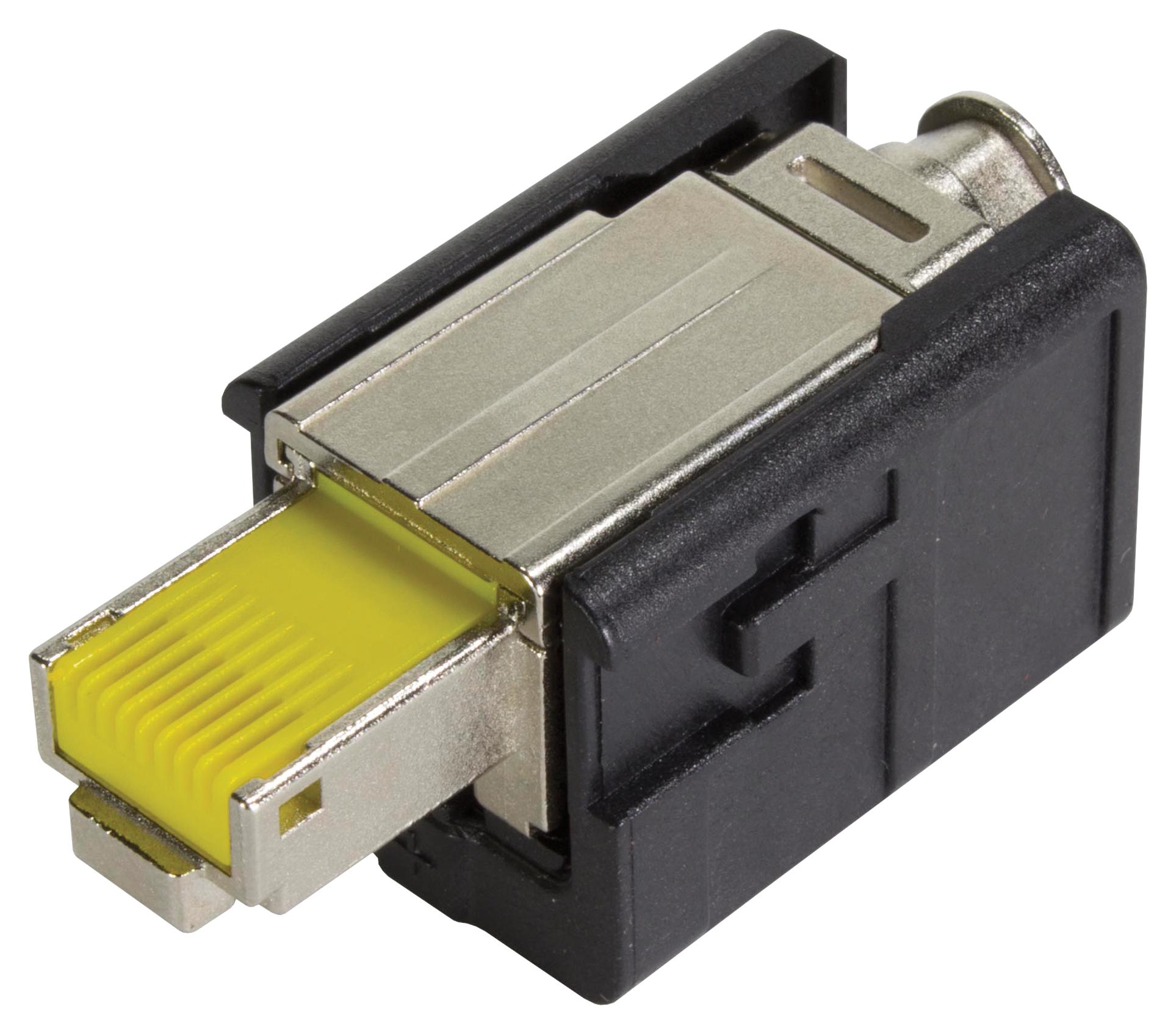

Harting 20820020001 Industrial Ethernet Connector
The Ha-VIS preLink System offers a versatile range of shielded connectors and modules designed for industrial Ethernet and data transmission. It features RJGS, M12 D-coded, and M12 X-coded connectors compliant with IEC standards, supporting speeds up to 10 Gbits/sec. These connectors are fully shielded 360°, suitable for PoE applications, and support operating voltages up to 57V. Constructed from zinc die-cast and plastic, they enable reliable connections for industrial automation, ensuring high durability and connection stability in harsh environments.
Harting 20820020001 Industrial Ethernet Connector Specifications:
- Mating Face: RJGS, M12 D-coded, M12 X-coded according to IEC standards
- Number of contacts: 8
- Transmission performance: Up to 10 Gbits/sec, category 6 / class E, up to 500 MHz
- Shielding: Fully shielded, 360° shielding contact
- Termination technology: HA-VIS preLink IDC according to IEC 60352-4
- Power over Ethernet: Yes, supports IEEE 802.3af and 802.3at
- Cable diameter: 13-1.6mm, wire gauge AWG 23-22, AWG 27-26
- Current: 1.18A at 20°C, derating applies
- Operating voltage max: 57V
- Contact resistance: 20mΩ
- Insulating resistance: 500MΩ between contacts
- Electric strength: Contact-contact 1.0kV, contact-shielding 15kV
- Degree of protection: IP65/67
- Temperature range: -40°C to +70°C
- Mating cycles: Min. 750 for RJ4S, min. 250 for M12, min. 10 for preLink terminations
- Material: Zinc die-cast, plastic options available
- Plating: Gold over Ni contact zone
- RoHS compliant: Yes
Buy the HARTING Ha-VIS preLink – Reliable Industrial Connectivity for Industrial Applications
Enhance your industrial networking with the reliable HARTING Ha-VIS preLink connectors. Designed for high-speed data transmission up to 10 Gbits/sec, these connectors support PoE and feature robust shielding for harsh environments. Made from durable zinc die-cast and plastic, they provide secure connections for automation, control, and industrial Ethernet systems. Compatible with IEC standards, these connectors ensure high durability, multiple mating cycles, and IP65/67 protection, making them ideal for industrial automation projects seeking top reliability and performance.
Order your HARTING Ha-VIS preLink connectors today and ensure dependable, high-speed industrial data transfer in harsh environments.
Frequently Asked Questions
Where can I buy Harting 20820020001?
You can click on the BUY or RFQ button to purchase 20820020001 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 20820020001?
You can download the 20820020001 datasheet or visit the Harting website for support.
Who is the manufacturer of 20820020001?
Harting
