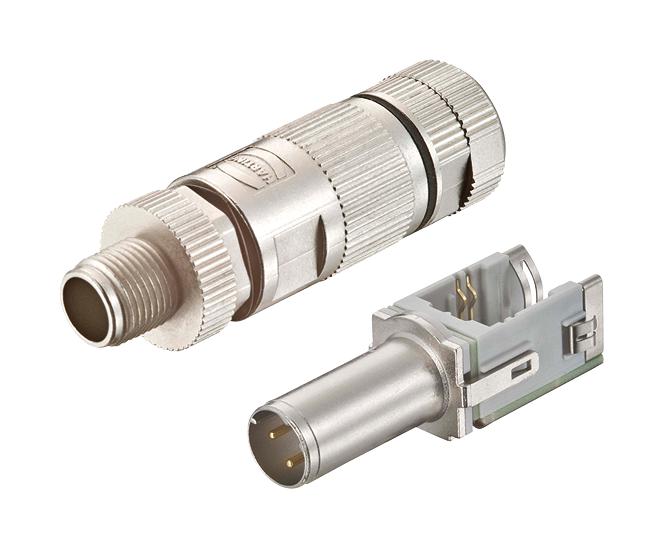

Harting 20820051214 Industrial Networking Connector
The Ha-VIS preLink System is a versatile and fully shielded networking solution designed for reliable data transmission in industrial environments. Compatible with RJ45 and M12 connectors, it supports PoE (IEEE 802.3af/at), category 6/class E, and speeds up to 500 MHz. The system features robust zinc die-cast housings, gold-plated contacts, and durable construction suitable for temperature ranges from -40°C to +70°C. Suitable for industrial automation, control systems, and high-performance data networks, it ensures high mating cycles and secure connections with IP 65/67 protection rating.
Harting 20820051214 Industrial Networking Connector Specifications:
- Connector types: RJ45, M12 D-coded, M12 X-coded
- Contacts: 8-pin configuration
- Transmission performance: Up to 500 MHz, category 6 / class E
- Shielding: Fully shielded with 360° contact
- Termination technology: HA-VIS preLink IDC, PoE compatible
- Cable diameter: 13-1.6mm, 0.8-1.4mm
- Wire gauge: AWG 23-22, AWG 27-26
- Current capacity: 118A at 20°C
- Pin material: Zinc die-cast
- Contact resistance: 20 mΩ
- Insulating resistance: 500 MΩ
- Max operating voltage: 57V
- Temperature range: -40°C to +70°C
- Degree of protection: IP 65/67
- Mating cycles: 750 for RJ45, 250 for M12
- RoHS compliant
- Material: Zinc die-cast housing, plastic inserts
- Plating: 50μm gold over nickel
Buy the HARTING Series Ha-VIS preLink Ethernet: 20820051214
Purchase the HARTING Ha-VIS preLink Ethernet connector today and enhance your industrial communication infrastructure. This high-quality, shielded connector supports PoE, category 6 performance, and is built for durability with zinc die-cast housing and gold-plated contacts. Ideal for automation, control systems, and high-speed data transfer, it offers IP 65/67 protection, up to 750 mating cycles, and operates reliably from -40°C to +70°C. Order now and ensure secure, fast, and dependable network connections in demanding environments.
Buy HARTING Ha-VIS preLink system now and experience unmatched reliability and high-performance industrial networking solutions.
Frequently Asked Questions
Where can I buy Harting 20820051214?
You can click on the BUY or RFQ button to purchase 20820051214 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 20820051214?
You can download the 20820051214 datasheet or visit the Harting website for support.
Who is the manufacturer of 20820051214?
Harting
