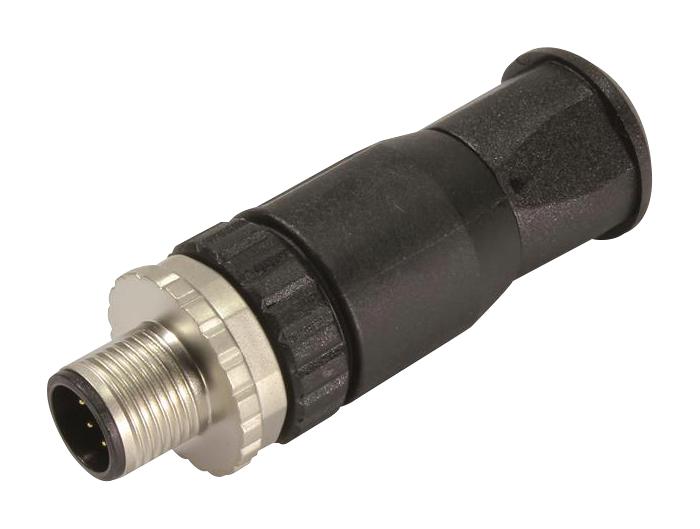

Harting 21033191801 M12 Screw Connector
The HARTING M12-SCREW-8P-ACOD-M-STR is a high-quality circular connector designed for reliable data and power transmission in industrial automation, control systems, and other demanding applications. Its M12 form factor ensures a compact and robust connection, while the screw termination provides secure and vibration-resistant assembly. The A-coding offers compatibility with various industrial protocols, and the male gender facilitates easy integration into existing systems. Constructed with polyamide and brass materials, this connector delivers excellent durability and performance, even in harsh environments. It is RoHS compliant and designed to meet stringent industry standards, ensuring safe and reliable operation.
Harting 21033191801 M12 Screw Connector Specifications:
- Part Number: 21 03 319 1801
- Specification: M12-SCREW-8P-ACOD-M-STR
- Category: Connectors
- Series: Circular connectors M12
- Element: Cable connector
- Termination Method: Screw termination
- Gender: Male
- Shielding: Unshielded
- Number of Contacts: 8
- Coding: A-coding
- Locking Type: Screw locking
- Conductor Cross-section Max: 0.5 mm²
- AWG: 20
- Rated Current: 2 A
- Rated Voltage: 30 V
- Rated Impulse Voltage: 0.8 kV
- Pollution Degree: 3
- Overvoltage Category: III
- Insulation Resistance: >10 MΩ
- Contact Resistance: ≤10 mΩ
- Tightening Torque: 0.6 Nm
- Wrench Size: 18
- Limiting Temperature: -30 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP67
- Cable Diameter: 4 ... 8 mm
- Isolation Group: I
- Material Insert: Polyamide (PA)
- Material Contacts: Brass
- Surface Contacts: Au over Ni Mating side
- Material Hood/Housing: Polyamide(PA), Zinc die-cast
- RoHS: compliant with exemption
- RoHS Exemptions: 6(c)
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: Not contained
- REACH Annex XIV Substances: Not contained
- REACH SVHC Substances: Lead
- ECHA SCIP Number: 0d7d3693-d625-47ab-934a-d241bf72c86e
- California Proposition 65 Substances: Lead
- IEC: 61076-2-101
- UL CSA: UL 2238 CYJV2.E302521, CSA-C22.2 No. 182.3 CYJV8.E302521
- Packaging Size: 1
- Net Weight: 28.5 g
- Country of Origin: Czechia
- European Customs Tariff Number: 85366990
- eCl@ss: 27440102
