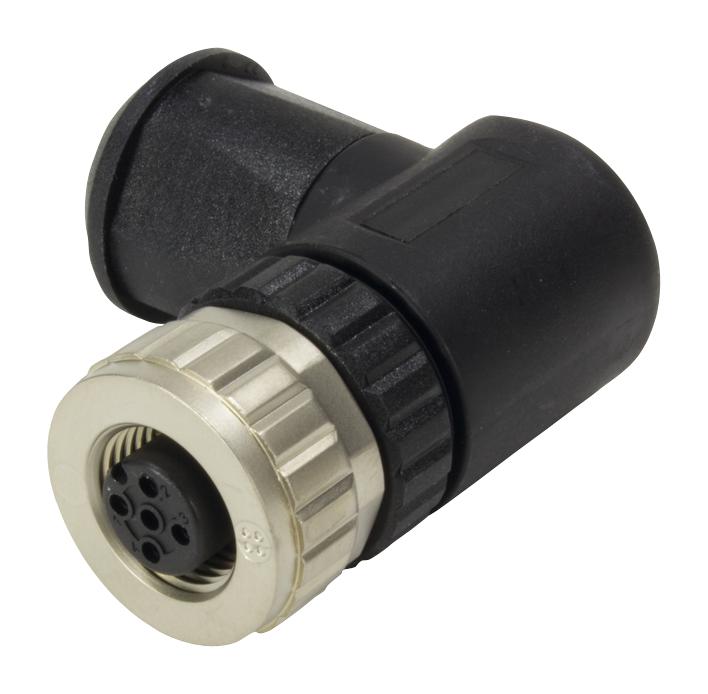

Harting 21033194801 M12 Screw Connector
The HARTING 21 03 319 4801 is a robust M12 screw connector designed for reliable data and power transmission in industrial automation, control systems, and sensor networks. Its angled design provides flexibility in installation, while the screw locking mechanism ensures a secure connection. Constructed with polyamide and brass, this connector offers excellent durability and resistance to environmental factors. Compliant with RoHS and various industry standards, it's a versatile solution for a wide range of applications requiring dependable connectivity.
Harting 21033194801 M12 Screw Connector Specifications:
- Part Number: 21 03 319 4801
- Specification: M12-Screw-8P-ACOD-F-ANG
- Category: Connectors
- Series: Circular connectors M12
- Element: Cable connector
- Termination Method: Screw termination
- Gender: Female
- Shielding: Unshielded
- Number of Contacts: 8
- Coding: A-coding
- Locking Type: Screw locking
- Conductor Cross-Section Max: 0.5 mm²
- AWG: 20
- Rated Current: 2 A
- Rated Voltage: 30 V
- Rated Impulse Voltage: 0.8 kV
- Pollution Degree: 3
- Overvoltage Category: III
- Insulation Resistance: >10 Ω
- Contact Resistance: ≤10 mΩ
- Tightening Torque: 0.6 Nm
- Wrench Size: 18
- Limiting Temperature: -30 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP67
- Cable Diameter: 4 ... 8 mm
- Isolation Group: I
- Material Insert: Polyamide (PA)
- Material Contacts: Brass
- Surface Contacts: Au over Ni Mating side
- Material Hood/Housing: Polyamide(PA), Zinc die-cast
- RoHS: compliant with exemption
- RoHS Exemptions: 6(c)
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: Not contained
- REACH Annex XIV Substances: Not contained
- REACH SVHC Substances: Lead
- ECHA SCIP Number: 0d7d3693-d625-47ab-934a-d241bf72c86e
- California Proposition 65 Substances: Lead
- Specifications IEC: IEC 61076-2-101
- UL CSA: UL 2238 CYJV2.E302521, CSA-C22.2 No. 182.3 CYJV8.E302521
- Packaging Size: 1
- Net Weight: 34 g
- Country of Origin: Czechia
- European Customs Tariff Number: 85366990
- eCl@ss: 27440102
