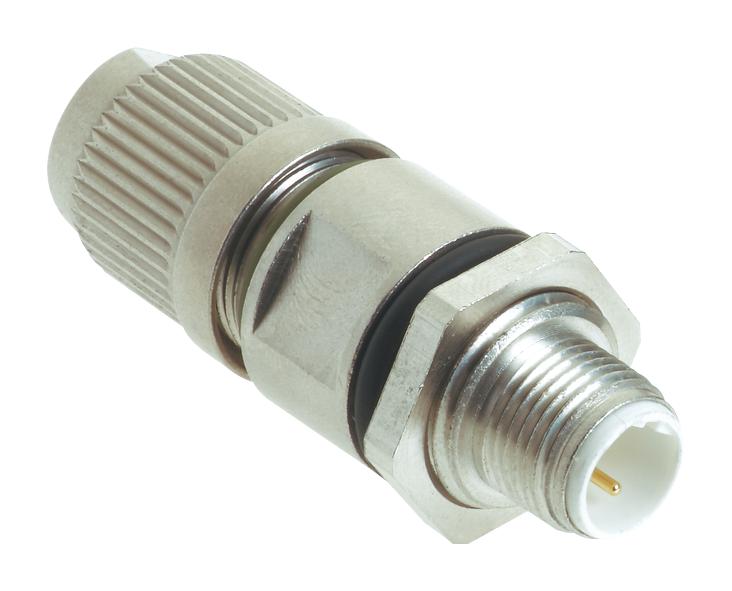

Harting 21033411425 M12 Shielded Circular Connector
The HARTING PFT M12 shielded Harax B-cod.Male connector is a robust and reliable solution for industrial applications requiring secure and shielded data transmission. It utilizes Harax connection technology for ease of use and features B-coding for specific application requirements. Constructed with polyamide inserts, brass contacts with gold plating, and a zinc die-cast housing, this connector offers excellent durability and resistance to environmental factors. Its IP65/IP67 rating ensures protection against dust and water ingress when mated, making it suitable for harsh industrial environments. Compliant with RoHS and various UL/CSA standards, this connector provides a safe and dependable connection for a wide range of applications.
Harting 21033411425 M12 Shielded Circular Connector Specifications:
- Part Number: 21 03 341 1425
- Specification: PFT M12 shielded Harax B-cod.Male
- HARTING eCatalogue: https://b2b.harting.com/21033411425
- Series: Circular connectors M12
- Element: Cable connector
- Termination method: HARAX®connection technology
- Gender: Male
- Locking type: Screw locking
- Shielding: Shielded
- Number of contacts: 2
- Coding: B-coding
- Conductor cross-section: 0.25 ... 0.34 mm²
- AWG: 24 ... 22
- Wire outer diameter: ≤2.6 mm
- Rated current: 4 A
- Rated voltage: 32 V
- Rated impulse voltage: 1.5 kV
- Pollution degree: 3
- Insulation resistance: ≥108Ω
- Contact resistance: ≤10 mΩ
- Ambient temperature: -40 ... +85 °C
- Mating cycles: ≥100
- Degree of protection: IP65/IP67 (when mated)
- Cable diameter: 7 ... 8.8 mm
- Overvoltage category: III
- Isolation group: I (600 ≤ CTI)
- Panel thickness: 2.5 ... 4.5 mm
- Material (insert): Polyamide
- Material (contacts): Brass
- Surface (contacts): Gold plated
- Material (hood/housing): Zinc die-cast
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Packaging size: 1
- Net weight: 52.8 g
- Country of origin: Germany
- Customs tariff number: 85389099
- UL CSA: UL 1977 ECBT2.E102079 CSA-C22.2 No. 182.3 ECBT8.E102079
