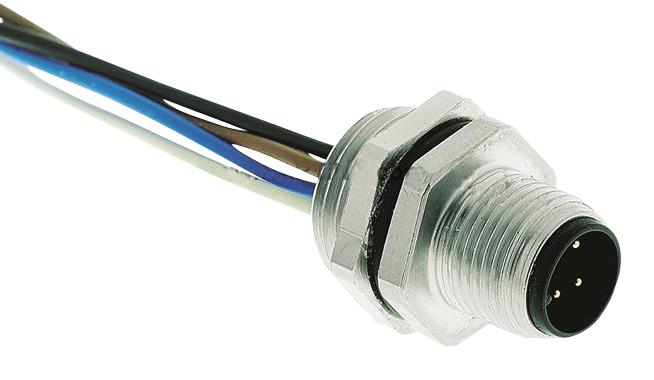

Harting 21033711405 M12 Male 4-Pole Connector
The HARTING 21 03 371 1405 is a robust M12 panel feed through connector designed for reliable data and power transmission in industrial environments. Featuring a male gender, 4-pole D-coding, and a zinc die-cast housing, this connector offers excellent protection against environmental factors. It is suitable for applications such as industrial automation, sensors, and actuators, where secure and reliable connectivity is essential. The connector supports data rates up to 100 MHz and is rated for a current of 4A and voltage of 250V, making it versatile for a wide range of applications.
Harting 21033711405 M12 Male 4-Pole Connector Specifications:
- Part Number: 21 03 371 1405
- Specification: M12 PFT male 4-pole D-coded M16x1.5
- Series: Circular connectors M12
- Element: Panel feed through
- Gender: Male
- Shielding: Unshielded
- Number of Contacts: 4
- Coding: D-coding
- Locking Type: Screw locking
- Conductor Cross-Section: 0.5 mm²
- AWG: 20
- Rated Current: 4 A
- Rated Voltage: 250 V
- Rated Impulse Voltage: 1.5 kV
- Pollution Degree: 3
- Transmission Characteristics: Cat. 5 Class D up to 100 MHz
- Overvoltage Category: III
- Data Rate: 10/100 Mbit/s
- Insulation Resistance: >10 MΩ
- Contact Resistance: ≤10 mΩ
- Tightening Torque: 2 Nm
- Limiting Temperature: -40 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP67
- Isolation Group: I
- Panel Thickness: 1 ... 4 mm
- Conductor Length: 50 cm
- Material (Insert): Polyamide (PA)
- Material (Contacts): Brass
- Surface (Contacts): Au over Ni Mating side
- Material (Hood/Housing): Zinc die-cast
- RoHS: Compliant with exemption
- RoHS Exemptions: 6(c)
- ELV Status: Compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: Not contained
- REACH Annex XIV Substances: Not contained
- REACH SVHC Substances: Lead
- ECHA SCIP Number: 0d7d3693-d625-47ab-934a-d241bf72c86e
- California Proposition 65 Substances: Lead
- Net Weight: 32.33 g
- Country of Origin: Germany
- European Customs Tariff Number: 85389099
- eCl@ss: 27440103
