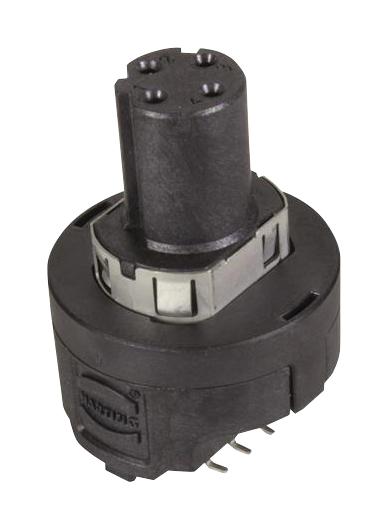

Harting 21033812421 M12 D-Coded Ethernet Connector
The HARTING 21 03 381 2421 is a M12 circular connector specifically engineered for fast Ethernet networks requiring power over Ethernet (PoE). Its D-coding ensures proper connection orientation, while the integrated transformer facilitates efficient signal transmission. Designed for front mounting, this connector provides a secure and reliable connection in industrial environments. It is RoHS compliant and offers a degree of protection (IP65/67) when mated, making it suitable for harsh conditions. The connector utilizes LCP for the insert and brass with gold plating for the contacts, ensuring durability and optimal signal integrity.
Harting 21033812421 M12 D-Coded Ethernet Connector Specifications:
- Part Number: 21 03 381 2421
- Specification: M12 MAGNET D-CODED STR POE FAST ETHERNET
- Category: Connector
- Series: Circular connectors M12
- Element: PCB adapter
- Termination Method: Reflow soldering termination (SMT)
- Gender: Female
- Shielding: Shielded
- Number of Contacts: 4
- Coding: D-coding
- Pack Contents: incl. housing
- Rated Current: 3 A
- Rated Voltage: 57 V
- Rated Impulse Voltage: 1.5 kV
- Pollution Degree: 3
- Insulation Resistance: > 108Ω
- Contact Resistance: ≤10 mΩ
- Ambient Temperature: -40 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP65 / IP67 when mated
- Transmission Characteristics: Cat. 5 Class D up to 100 MHz
- Data Rate: 100 Mbit/s
- Material (Insert): LCP
- Material (Contacts): Brass
- Surface (Contacts): Gold plated
- RoHS: compliant with exemption
- RoHS Exemptions: 6c: Copper alloy containing up to 4 % lead by weight; 7c-I: Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH Annex XIV Substances: No
- REACH SVHC Substances: Lead
- Packaging Size: 1
- Net Weight: 1 g
- Country of Origin: China
- European Customs Tariff Number: 8536901900
- eCl@ss: 27440402 PCB connector
