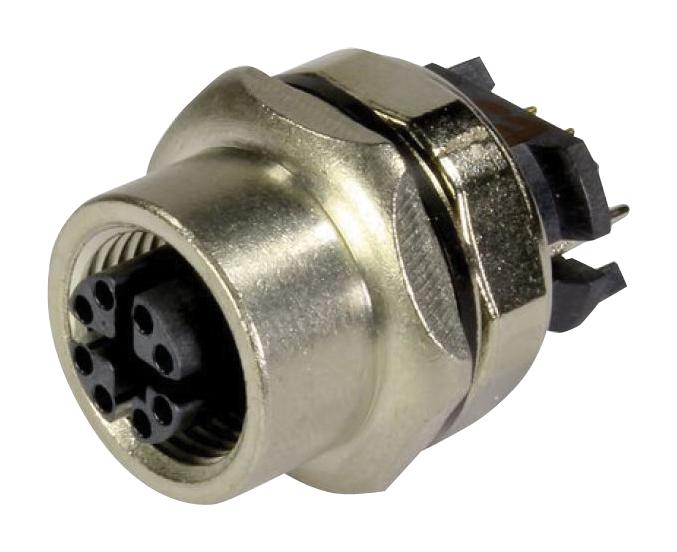

Harting 21033812802 M12 CAT6a Receptacle Straight
The HARTING 21 03 381 2802 is a M12 CAT6a receptacle designed for reliable data transmission in industrial environments. This straight front connector offers CAT 6A performance, shielding, and a robust construction suitable for demanding applications. It features 8 contacts, gold-plated copper alloy contacts, and a zinc die-cast housing, ensuring excellent signal integrity and durability. The connector is rated for a wide temperature range and is IP67 rated for protection against dust and water ingress. It is commonly used in automation, industrial networking, and power transmission applications.
Harting 21033812802 M12 CAT6a Receptacle Straight Specifications:
- Part Number: 21 03 381 2802
- Specification: Straight
- HARTING eCatalogue: https://b2b.harting.com/21033812802
- Category: Connector
- Series: Circular connectors M12
- Element: PCB adapter
- Termination method: Reflow soldering termination (THR/SMC)
- Gender: Female
- Shielding: Shielded
- Number of contacts: 8
- Coding: X-coding
- Rated current: 0.5 A
- Rated voltage: 50 V
- Rated impulse voltage: 0.8 kV
- Pollution degree: 3
- Insulation resistance: ≥108Ω
- Contact resistance: ≤10 mΩ
- Ambient temperature: -40 ... +85 °C
- Connection temperature: -5 ... +50 °C
- Mating cycles: ≥100
- Degree of protection: IP67
- Transmission characteristics: Cat. 6A Class E up to 500 MHz
- Overvoltage category: III
- Isolation group: I (600 ≤ CTI)
- Material (insert): LCP
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- Material (hood/housing): Zinc die-cast
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- UL / CSA: UL 1977 ECBT2.E102079 CSA-C22.2 No. 182.3 ECBT8.E102079
- Packaging size: 60
- Net weight: 26.02 g
- Country of origin: Germany
- Customs tariff number: 85366990
