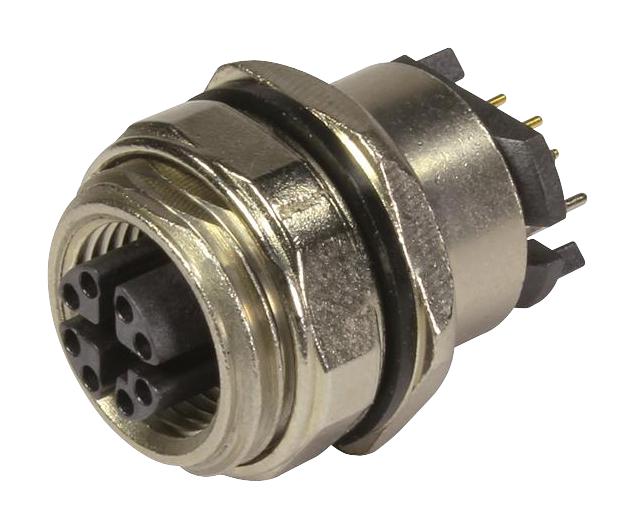

Harting 21033812804 M12 CAT6a Straight Connector
The HARTING 21 03 381 2804 M12 CAT6a connector provides a reliable and high-performance connection solution for industrial automation and networking applications. Its robust construction, shielded design, and CAT6A capabilities ensure data integrity and signal quality. The THR termination method simplifies PCB integration, while the screw locking mechanism provides secure and dependable mating. This connector is ideal for applications requiring high-speed data transmission and reliable connectivity in harsh environments.
Harting 21033812804 M12 CAT6a Straight Connector Specifications:
- Part Number: 21 03 381 2804
- Specification: M12 CAT6a Bu gerade HWM
- Series: Circular connectors M12
- Element: PCB adapter
- Description of hood/housing: Long version
- Termination method: Reflow soldering termination (THR)
- Gender: Female
- Shielding: Shielded
- Number of contacts: 8
- Coding: X-coding
- Locking type: Screw locking
- Pack contents: 60 pieces in a tray
- Rated current: 0.5 A
- Rated voltage: 50 V
- Rated impulse voltage: 0.8 kV
- Pollution degree: 3
- Transmission characteristics: Cat. 6A Class E up to 500 MHz
- Overvoltage category: III
- Data rate: 10 Mbit/s, 100 Mbit/s, 1 Gbit/s, 2.5 Gbit/s, 5 Gbit/s, 10 Gbit/s
- Insulation resistance: >108Ω
- Contact resistance: ≤10 mΩ
- Tightening torque: 2 Nm Lock nut
- Limiting temperature: -40 ... +85 °C
- Mating cycles: ≥100
- Degree of protection: IP65 / IP67 mated condition
- Isolation group: IIIa (175 ≤ CTI < 400)
- Material (insert): Liquid crystal polymer (LCP)
- Material (contacts): Copper alloy
- Surface (contacts): Au over Ni Mating side
- Material (hood/housing): Zinc die-cast
- Material flammability class: V-0
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, Lead
- ECHA SCIP number: 0d7d3693-d625-47ab-934a-d241bf72c86e
- California Proposition 65 substances: Lead, Nickel, Naphthalene
- Specifications: IEC 61076-2-109
- UL / CSA: UL 1977 ECBT2.E102079, CSA-C22.2 No. 182.3 ECBT8.E102079
- PROFINET: Yes
- Packaging size: 60
- Net weight: 28.54 g
- Country of origin: Romania
- European customs tariff number: 85444290
- eCl@ss: 27460201 PCB connector (board connector)
