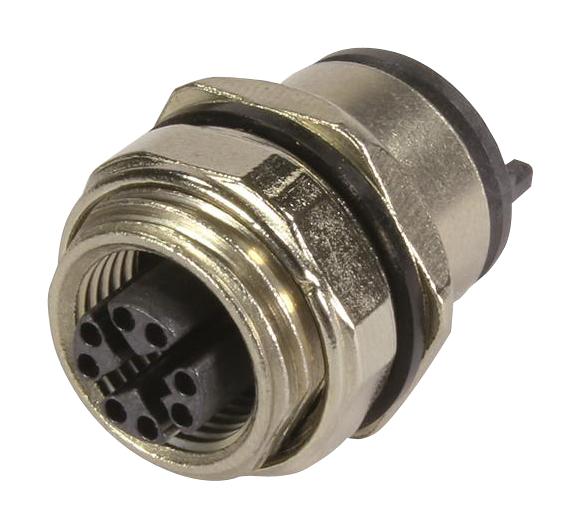

Harting 21033812805 M12 CAT5 Connector
The HARTING 21 03 381 2805 is a robust M12 CAT5 connector suitable for various industrial applications requiring reliable data transmission. It incorporates a screw locking mechanism, shielding for signal integrity, and a durable zinc die-cast housing. The connector is RoHS compliant with exemptions and is designed for rear mounting, making it ideal for space-constrained environments. Its CAT5 Class D rating supports data transfer up to 100 MHz, ensuring high-speed connectivity.
Harting 21033812805 M12 CAT5 Connector Specifications:
- Part Number: 21 03 381 2805
- Specification: M12 CAT5 Bu gerade HWM
- Series: Circular connectors M12
- Element: PCB adapter
- Description of hood/housing: 13 mm
- Termination method: Reflow soldering termination (THR/SMC)
- Gender: Female
- Locking type: Screw locking
- Shielding: Shielded
- Number of contacts: 8
- Coding: X-coding
- Rated current: 0.5 A
- Rated voltage: 50 V
- Rated impulse voltage: 0.8 kV
- Pollution degree: 3
- Insulation resistance: > 108Ω
- Contact resistance: ≤10 mΩ
- Ambient temperature: -40 ... +85 °C
- Mating cycles: ≥100
- Degree of protection: IP67
- Transmission characteristics: Cat. 5 Class D up to 100 MHz
- Overvoltage category: III
- Isolation group: I (600 ≤ CTI)
- Material (insert): LCP
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- Material (hood/housing): Zinc die-cast
- RoHS: compliant with exemption
- RoHS exemptions: 6c: Copper alloy containing up to 4 % lead by weight
- ELV status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII substances: No
- REACH ANNEX XIV substances: No
- REACH SVHC substances: Lead
- Specifications (standard): IEC 61076-2-109
- UL Number: UL 1977 ECBT2.E102079
- CSA Number: CSA-C22.2 No. 182.3 ECBT8.E102079
- Packaging size: 60
- Net weight: 27.78 g
- Country of origin: Germany
- European customs tariff number: 85444290
- eCl@ss: 27440402
