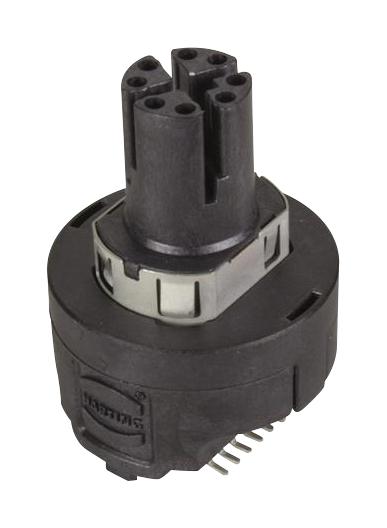

Harting 21033812824 M12 Straight PoE Connector
The HARTING 21 03 381 2824 is a robust M12 circular connector designed for reliable data transmission and power delivery in industrial applications. Featuring X-coding and PoE capabilities, this connector is ideal for front mounting and provides a secure connection with a degree of protection of IP65/IP67 when mated. Constructed with LCP insert material and gold-plated brass contacts, it ensures excellent electrical performance and durability. It is compliant with IEC 61076-2-109 and supports data rates up to 1 Gbit/s, making it suitable for demanding applications requiring high-speed data transfer and power over Ethernet.
Harting 21033812824 M12 Straight PoE Connector Specifications:
- Part Number: 21 03 381 2824
- Specification: M12 MAGNETICS X-CODED STRAIGHT POE 1GB
- Series: Circular connectors M12
- Element: PCB adapter
- Termination Method: Reflow soldering termination (SMT)
- Gender: Female
- Shielding: Shielded
- Number of Contacts: 8
- Coding: X-coding
- Pack Contents: incl. housing
- Rated Current: 0.8 A
- Rated Voltage: 57 V
- Rated Impulse Voltage: 1.5 kV
- Pollution Degree: 3
- Insulation Resistance: > 108Ω
- Contact Resistance: ≤10 mΩ
- Ambient Temperature: -40 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP65 / IP67 when mated
- Transmission Characteristics: Cat. 6A Class E up to 500 MHz
- Data Rate: 1 Gbit/s
- Material (Insert): LCP
- Material (Contacts): Brass
- Surface (Contacts): Gold plated
- RoHS: compliant with exemption
- RoHS Exemptions: 6c: Copper alloy containing up to 4 % lead by weight; 7c-I: Electrical and electronic components containing lead in a glass or ceramic matrix compound
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH Annex XIV Substances: No
- REACH SVHC Substances: Lead
- Specifications: IEC 61076-2-109
- Packaging Size: 1
- Net Weight: 23 g
- Country of Origin: China
- European Customs Tariff Number: 8536901100
- eCl@ss: 27440402 PCB connector
