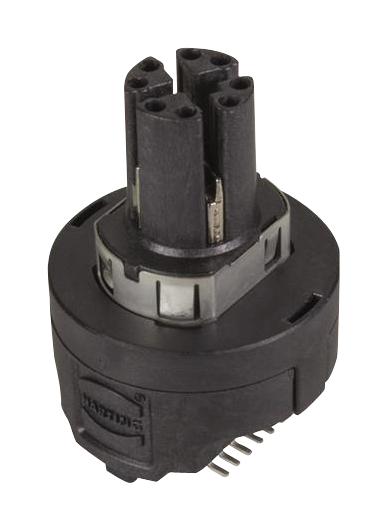

Harting 21033812825 M12 Magnetics Connector
The HARTING 21 03 381 2825 is a robust M12 circular connector designed for reliable data transmission in industrial applications. This connector features X-coding, shielding, and PoE capabilities, making it suitable for a wide range of networking and automation systems. It is designed for front mounting and utilizes reflow soldering termination (SMT) for easy PCB integration. The connector is RoHS compliant and offers excellent performance with a data rate of 10 Gbit/s and Cat. 6A Class E up to 500 MHz.
Harting 21033812825 M12 Magnetics Connector Specifications:
- Part Number: 21 03 381 2825
- Specification: M12 MAGNETICS X.CODED STRAIGHT POE 10 GB
- Series: Circular connectors M12
- Element: PCB adapter
- Termination Method: Reflow soldering termination (SMT)
- Gender: Female
- Shielding: Shielded
- Number of Contacts: 8
- Coding: X-coding
- Pack Contents: incl. housing
- Rated Current: 0.8 A
- Rated Voltage: 57 V
- Rated Impulse Voltage: 1.5 kV
- Pollution Degree: 3
- Insulation Resistance: > 108Ω
- Contact Resistance: ≤10 mΩ
- Ambient Temperature: -40 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP65 / IP67 when mated
- Transmission Characteristics: Cat. 6A Class EAup to 500 MHz
- Data Rate: 10 Gbit/s
- Material (Insert): LCP
- Material (Contacts): Brass
- Surface (Contacts): Gold plated
- RoHS: compliant with exemption
- RoHS Exemptions: 6c: Copper alloy containing upto 4 % lead byweight, 7c-I: Electrical and electronic components containing lead in a glass or ceramic
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH Annex XIV Substances: No
- REACH SVHC Substances: Lead
- Specifications: IEC 61076-2-109
- Packaging Size: 1
- Net Weight: 23 g
- Country of Origin: China
- European Customs Tariff Number: 8536901900
- eCl@ss: 27440402 PCB connector
