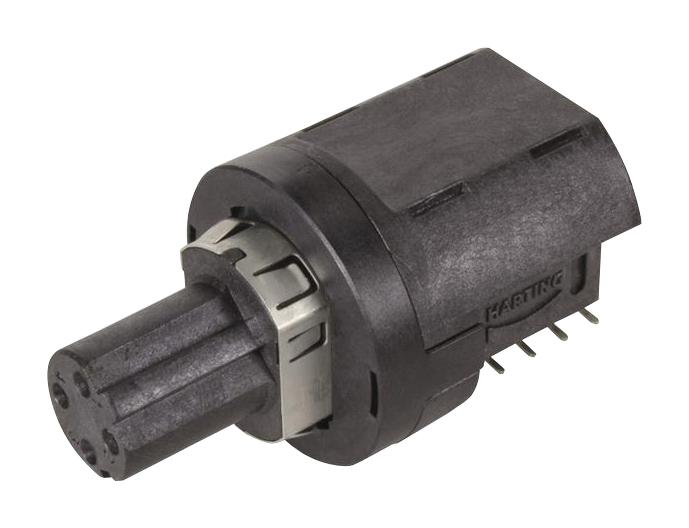

Harting 21033814422 M12 D-Coded Angled PoE
The HARTING 21 03 381 4422 M12 Magnetics connector provides a reliable and compact solution for Ethernet applications. This D-coded, angled connector is PoE enabled and designed for front mounting, making it ideal for industrial automation, networking, and power transmission. It boasts a robust construction with shielded contacts, ensuring signal integrity and protection against electromagnetic interference. The connector supports data rates up to 100 Mbit/s (Cat. 5 Class D) and is designed for reflow soldering termination (SMT). It is RoHS compliant with specific exemptions for lead content, and offers a degree of protection IP65/IP67 when mated.
Harting 21033814422 M12 D-Coded Angled PoE Specifications:
- Part Number: 21 03 381 4422
- Specification: M12 MAGNET D-CODED ANG POE FAST ETHERNET
- Series: Circular connectors M12
- Element: PCB adapter
- Termination Method: Reflow soldering termination (SMT)
- Gender: Female
- Shielding: Shielded
- Number of Contacts: 4
- Coding: D-coding
- Pack Contents: incl. housing
- Rated Current: 3 A
- Rated Voltage: 57 V
- Rated Impulse Voltage: 1.5 kV
- Pollution Degree: 3
- Insulation Resistance: > 108Ω
- Contact Resistance: ≤10 mΩ
- Ambient Temperature: -40 ... +85 °C
- Mating Cycles: ≥100
- Degree of Protection: IP65 / IP67 when mated
- Transmission Characteristics: Cat. 5 Class D up to 100 MHz
- Data Rate: 100 Mbit/s
- Material (Insert): LCP
- Material (Contacts): Brass
- Surface (Contacts): Gold plated
- RoHS: compliant with exemption
- RoHS Exemptions: 6c, 7c-I
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH Annex XIV Substances: No
- REACH SVHC Substances: Lead
- Specifications (IEC): IEC 61076-2-101
- Packaging Size: 1
- Net Weight: 23 g
- Country of Origin: China
- European Customs Tariff Number: 8536901900
- eCl@ss: 27440402
