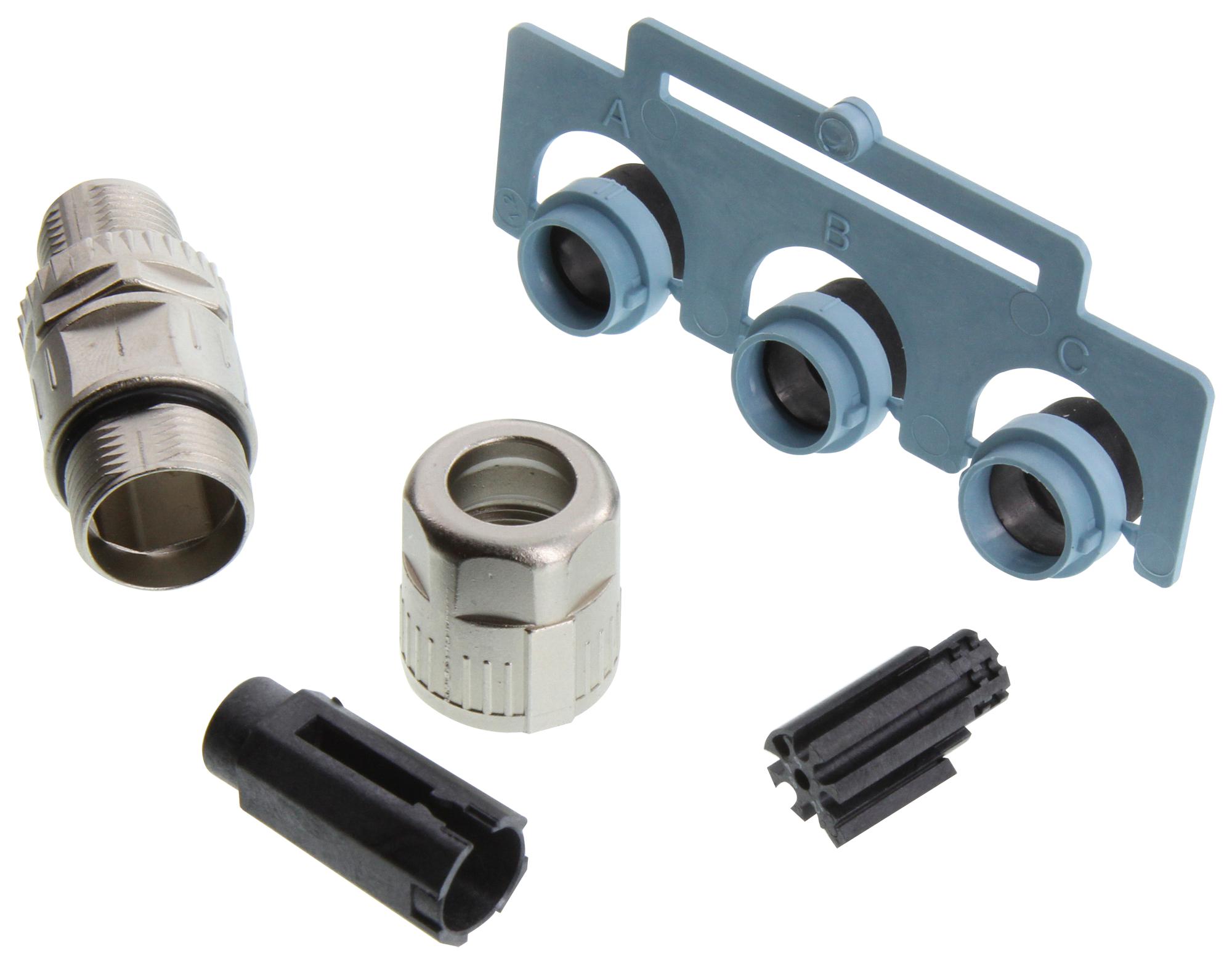

Harting 21038211805 M12 Circular Connector
The M12 Crimp Slim Design 8pol A-coded male connector offers reliable performance with a compact, shielded design suitable for industrial automation and sensor connections. Constructed with durable materials, it features a crimp termination method, IP65/IP67 protection when mated, and is rated for 2A and 30V. The connector supports a conductor cross-section of AWG 26 to AWG 22, operating in temperatures from -40°C to +85°C. Its robust locking mechanism ensures up to 2500 mating cycles, making it ideal for demanding industrial environments requiring secure, high-quality cable connections.
Harting 21038211805 M12 Circular Connector Specifications:
- Series: Circular connectors M12
- Type: Cable connector, straight, crimp termination
- Gender: Male
- Number of contacts: 8
- Coding: A-coding
- Rated current: 2A
- Rated voltage: 30V
- Rated impulse voltage: 1.5kV
- Protection degree: IP65 when mated, IP67 when mated
- Conductor cross-section: AWG 26 ... AWG 22 (0.13 ... 0.33 mm²)
- Wire outer diameter: 57...8.8mm
- Material (insert): LCP
- Material (hood/housing): Zinc die-cast
- Operating temperature: -40°C to +85°C during operation, -5°C to +50°C during connection
- Locking: Screw locking, knurled screw/nut
- Wrench size: Not specified
- Number of mating cycles: 2500
- Overvoltage category: Ui 600 V
- Insulation group: 3
- RoHS compliant: Yes
- UL/CSA certifications: UL 2238, CSA-C22.2 No. 182.3
- Country of origin: Romania
- Packaging size: Not specified
- Net weight: 46.29 grams
Buy the HARTING Series Circular Connectors M12: 21038211805
Purchase the HARTING M12 Circular Connector today to benefit from a high-quality, shielded, IP65/IP67 rated industrial connector. Designed for sensor and automation applications, it offers a durable zinc die-cast housing and reliable crimp termination for secure connections. With a rated current of 2A and voltage of 30V, it handles harsh industrial environments with ease. Easy to install and highly durable, this connector supports up to 2500 mating cycles, making it the perfect choice for long-lasting industrial automation and control systems.
Order your HARTING Series M12 Crimp Slim Design 8pole A-coded male connector today and ensure secure, reliable industrial connections in demanding environments.
