Harting 21038212505 Industrial M12 Connector
The M12 Slim Design series offers compact, robust connectors suitable for industrial automation and data communication applications. Available in various configurations including straight, angled, male, and female versions with 4, 5, and 8 poles, these connectors feature durable brass contacts with gold plating for reliable conductivity. They support conductor cross sections up to 1.5 mm² or AWG 16, with cable diameters from 4 to 8 mm, and operate within a temperature range of -40°C to +85°C. They are rated IP65/IP67 for environmental protection, withstand 500 mating cycles, and utilize ZP410 plastic housing ensuring durability and resistance to harsh environments.
Harting 21038212505 Industrial M12 Connector Specifications:
- Configuration: 4, 5, 8 poles (male and female, straight and angled versions)
- Contact Material: Brass with gold plating
- Contact Carrier Material: PA
- Housing Material: ZP410 plastic (shielded)
- Conductor Cross Section Max: 1.5 mm² / AWG 16
- Cable Diameter: 4-8 mm
- Operating Temperature Range: -40°C to +85°C
- Degree of Protection: IP65/IP67
- Mating Cycles: 500
- Rated Current: 75A for higher versions, 2A-16A for lower versions
- Rated Voltage: Up to 250V depending on version
- Recommended Tightening Torque: 0.6 Nm
- Cable Compatibility: AWG 26-18 for slim design, AWG 16 for standard

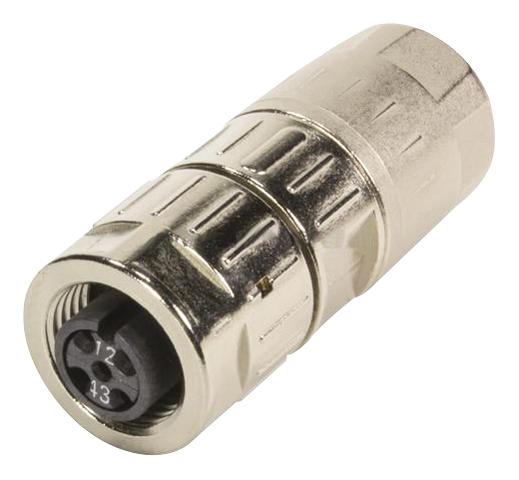

Buy the Buy HARTING M12 Slim Design Part Number 21038212505 Online
Secure your automation and data connections with HARTING's M12 Slim Design connectors. Featuring robust brass contacts with gold plating, IP65/IP67 protection, and versatile configurations including straight and angled, these connectors are ideal for harsh environments. They support conductor sizes up to 1.5 mm², have a temperature range of -40°C to +85°C, and endure hundreds of mating cycles. Whether for automation, machinery, or data networks, purchase online today for dependable, long-lasting performance.
Get HARTING M12 Slim Design with gold-plated contacts today—built for durable, reliable industrial networking and automation solutions.
Frequently Asked Questions
Where can I buy Harting 21038212505?
You can click on the BUY or RFQ button to purchase 21038212505 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21038212505?
You can download the 21038212505 datasheet or visit the Harting website for support.
Who is the manufacturer of 21038212505?
Harting
