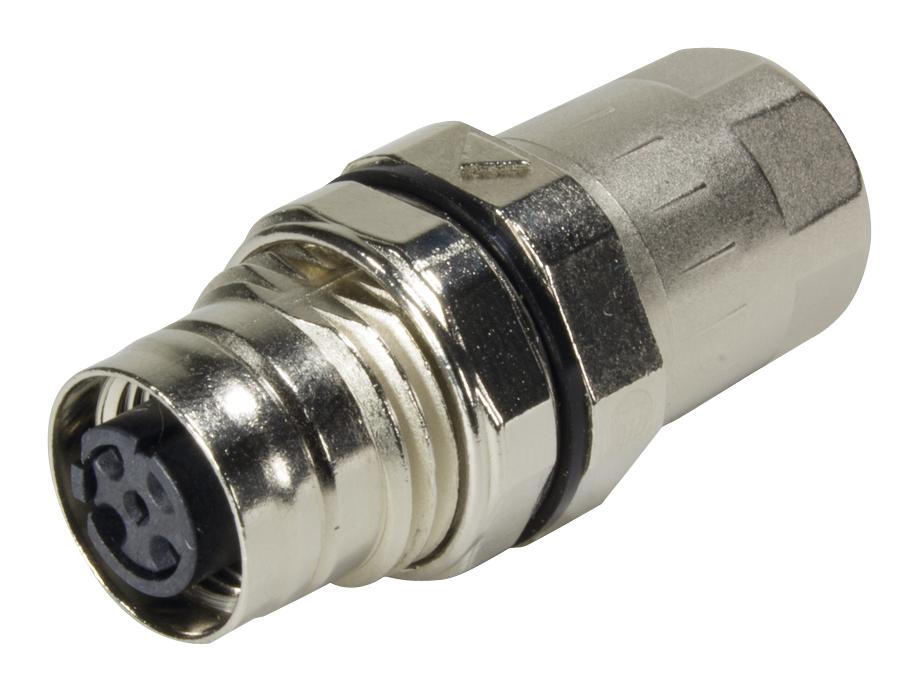

Harting 21038212525 Industrial M12 Connector
The M12 PFT Crimp SD Female connector with 4+5 poles and A-coding is a compact, shielded circular connector suitable for industrial automation. Designed for rear mounting with crimp termination, it features a push-pull locking mechanism for quick, secure connections. Made from durable polyamide and zinc die-cast materials, it supports an operating temperature of -40°C to 85°C and is rated for 4A and 600V. Ideal for sensor and actuator connections, it complies with IEC 61076-2-101 standards, ensuring reliability in harsh environments.
Harting 21038212525 Industrial M12 Connector Specifications:
- Rated voltage: 48 VAC / 60 VDC, 110V AC/DC with 4 contacts, 1.5 KV impulse voltage
- Rated current: 4A
- Pollution degree: 3
- Overvoltage category: IEC Category II
- Insulation resistance: >10 MΩ at 100V DC
- Contact resistance: <10 mΩ
- Tightening torque: 2.0 Nm
- Suitable for conductor cross-section: AWG 26 ... AWG 18, 0.13 ... 0.82 mm²
- Wire outer diameter: 4.3 ... 6.6 mm
- Material (insert): Polyamide (PA)
- Material (housing): Zinc die-cast
- Degree of protection: IP65/IP67 when mated
- Number of mating cycles: >2,500
- Operating temperature: -40°C to +85°C
- Locking type: Screw and push-pull mechanism
- Certifications: IEC 61076-2-101, RoHS, REACH
Buy the HARTING Series M12 Connector: 21038212525
Purchase HARTING M12 PFT Crimp SD Female connector with 4+5 poles online today. Designed for industrial automation applications, it offers reliable, shielded connections with quick push-pull locking. Made from durable polyamide and zinc die-cast components, it withstands harsh environments and operates at temperatures from -40°C to 85°C. Rated for 4A and 600V, it ensures safety and stability in sensor, actuator, and field wiring systems. Order now for fast delivery and quality assured performance.
Get HARTING 21038212525 today—built for precision and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy Harting 21038212525?
You can click on the BUY or RFQ button to purchase 21038212525 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21038212525?
You can download the 21038212525 datasheet or visit the Harting website for support.
Who is the manufacturer of 21038212525?
Harting
