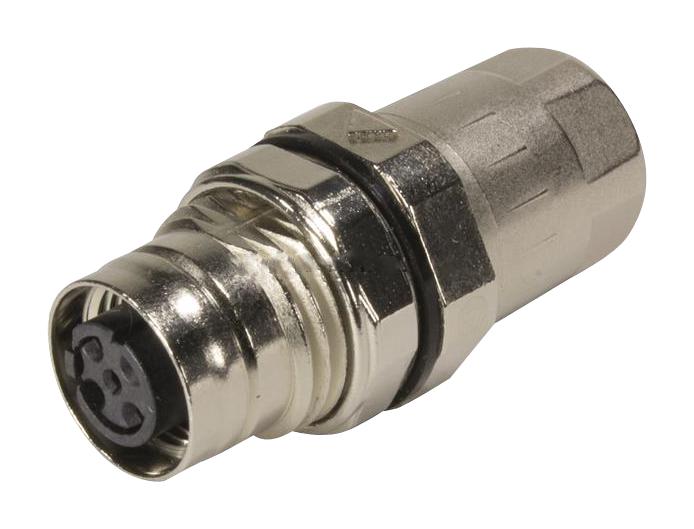

Harting 21038212825 Industrial Circular Connector
The M12 PFT Crimp SD Female 8-pole A-Coded connector features a compact, slim design suitable for industrial automation and field applications. It offers reliable crimp termination, shielded construction, and a push-pull locking mechanism for secure connections. With an IP65/IP67 rating, it withstands harsh environments, supports cable diameters from 5.7 to 8.8 mm, and is rated for 2A current and 600V voltage. Made from liquid crystal polymer and zinc die-cast, it ensures durability and compliance with industry standards including IEC 61076-2-101, RoHS, and REACH.
Harting 21038212825 Industrial Circular Connector Specifications:
- Rated voltage: 600 V
- Rated impulse voltage: Not specified
- Pollution degree: 3
- Overvoltage category: Cat III
- Insulation resistance: >10^9 Ω
- Contact resistance: Not specified
- Tightening torque: 1 Nm
- Wrench size: 15 mm
- Limiting temperature: -40°C to +85°C
- Mating cycles: 2500
- Degree of protection: IP65/IP67 (mated)
- Cable diameter: 5.7 to 8.8 mm
- Material (insert): Liquid crystal polymer (LCP)
- Material (housing): Zinc die-cast
- Shielding: Shielded
- Number of contacts: 8
- Coding: A-Coded
- Termination method: Crimp
- Locking type: Screw lock
- Conductor cross-section: 0.13 to 0.33 mm² (AWG 26 to AWG 22)
Buy the HARTING 21038212825 – Reliable Industrial Connectors for Automation Applications
Order the HARTING 21038212825 industrial circular connector online today for robust, secure, and reliable connections in automation, manufacturing, and field applications. Designed for harsh environments, it features a compact slim design, shielded construction, and IP65/IP67 protection. Supports cable diameters from 5.7 to 8.8 mm and rated for 2A at 600V. Made from durable liquid crystal polymer and zinc die-cast, ensuring longevity and compliance with industry standards like IEC 61076-2-101, RoHS, and REACH. Perfect for critical industrial automation tasks.
Get HARTING 21038212825 today—built for precision and long-lasting durability in industrial automation and field installation environments.
Frequently Asked Questions
Where can I buy Harting 21038212825?
You can click on the BUY or RFQ button to purchase 21038212825 from an authorized Harting distributor.
How do I troubleshoot issues or seek technical support for part 21038212825?
You can download the 21038212825 datasheet or visit the Harting website for support.
Who is the manufacturer of 21038212825?
Harting
