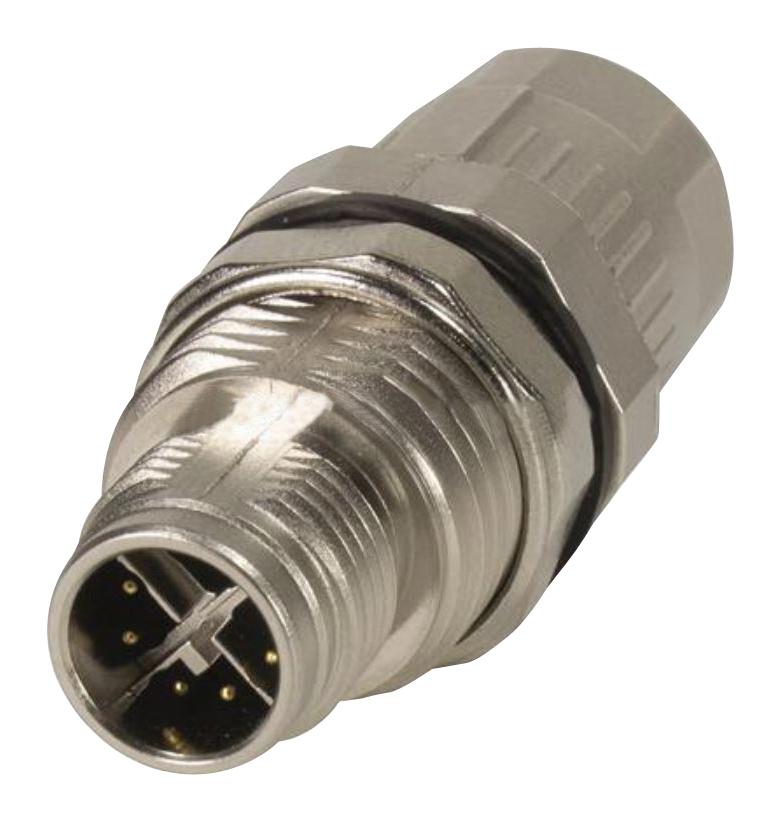

Harting 21038811825 M12 Connector
The M12 SD PFT Male X cod 8 pole connector is a high-performance circular connector designed for industrial and Ethernet applications, supporting up to 10 Gbit data rates. It features a slim, shielded design with screw locking and rear panel mounting for reliable connections. Constructed with liquid crystal polymer and zinc die-cast components, it offers an IP65/IP67 degree of protection. Rated for 48V and 0.5A, it is suitable for automation, field wiring, and data transmission in harsh environments with 2500 mating cycles.
Harting 21038811825 M12 Connector Specifications:
- Rated voltage: 48V
- Rated current: 0.5A
- Number of contacts: 8
- Coding: X-coding
- Gender: Male
- Termination method: Crimp
- Shielding: Shielded
- Conductor cross-section: AWG 28 ... AWG 23
- Wire outer diameter: 1.4mm
- Cable diameter: 5.7 ... 8.8 mm
- Mating cycles: 2500
- Tightening torque: 2 Nm
- Material (insert): Liquid crystal polymer (LCP)
- Material (hood/housing): Zinc die-cast
- Protection degree: IP65 / IP67
- Operating temperature: -40°C to +85°C
- Insulation group: Not contained
- Compliance: RoHS, ELV, China RoHS, REACH compliant
- Overvoltage category: 3
- Transmission characteristics: Cat6, Class E up to 500 MHz
- Data rate: Up to 10 Gbit/s
- Length: 48V rating
- Net weight: 38.79 g
- Country of origin: Romania
Buy the HARTING Series M12 SD PFT: 21038811825
Shop online for the high-performance HARTING M12 SD PFT connector, featuring shielded, 8-pole design suitable for industrial and Ethernet use. This robust, IP65/IP67 rated connector offers a secure crimp termination, screw locking, and support for data rates up to 10 Gbit/s. Made with durable materials such as liquid crystal polymer and zinc die-cast, it withstands harsh environments with up to 2500 mating cycles. Ideal for automation, field wiring, and data transmission projects requiring durable and reliable connectivity solutions.
Order your HARTING Series M12 SD PFT Male X cod 8 pole connector today and ensure reliable, high-speed connections for industrial and Ethernet applications.
