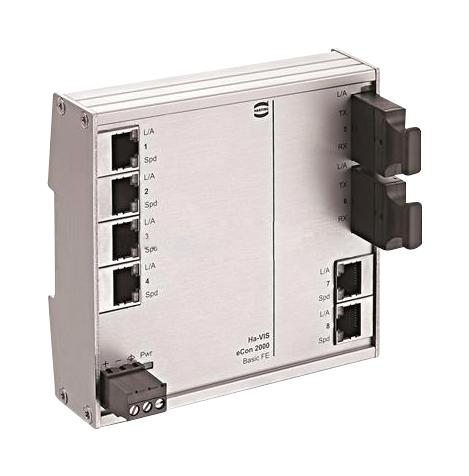

Harting 24020062110 Fast Ethernet Switch
The HARTING eCon 2000 Fast Ethernet family of unmanaged Ethernet switches is designed for quick and easy network expansion and reconstruction in industrial environments. Its compact, flat design allows for installation in restricted spaces, and it offers various port combinations including RJ45 and fiber optic options. The switch supports automatic rate detection, wiring configuration, and is available in both commercial (0°C to +55°C) and industrial (-40°C to +70°C) temperature ranges. It's ideal for applications in industrial networks, machinery automation, wind energy, transportation, and shipbuilding.
Harting 24020062110 Fast Ethernet Switch Specifications:
- Housing_width: 46.5, 60, 120 mm
- Number_of_ports: 3, 4, 5, 8, 7, 8, 16
- Switching_technology: Store and Forward
- Supported_standards: IEEE 802.3
- Frame_Size: 1552 bytes, 2 kbytes
- MAC_table_size: 1k entries, 8k entries
- Packet_buffer_size: 448 kbit, 2 Mbit
- Non_blocking: Yes
- Quality_of_Service: Yes
- Energy_Efficient: Yes
- PROFINET_compatible: Yes
- EthernetIP_compatible: Yes
- Nominal_voltage: 24 VDC, 48 VDC
- Permissible_voltage_range: 9 VDC ... 60 VDC
- Surge_protection: Yes
- Reverse_polarity_proof: Yes
- Starting_current: 1.60 A, 5.60 A
- Overcurrent_protection: Yes (2/4 A)
- Max_power_consumption_24VDC: 0.77 W ... 3.1 W
- Conductor_cross_section: 0.08 mm² ... 2.5 mm² (28 AWG ... 12 AWG)
- Type_of_connection: 3-pole, pluggable screwed contact
- Supply_circuit: SELV (circuit breaker 10 A)
- Type_of_connection_RJ45: RJ45
- Auto_negotiation: Yes
- Auto_polarity: Yes
- Auto_MDIX: Yes
- Transfer_conditions_Twisted_pair: Twisted pair
- Transfer_speed_10BASE_T: 10 / 100 Mbit/s
- Transfer_length_Twisted_pair: 100 m (Cat 5)
- Type_of_fibre: Multi-mode (MM), Single-mode (SM)
- Type_of_connection_FOC: SC Duplex
- Transfer_conditions_FOC: FOC
- Transfer_speed_100BASE_FX: 100 Mbit/s
- Transfer_length_SM: 15 km
- Output_power_MM: ≤ -19 dBm ... -14 dBm
- Output_power_SM: ≤ -15 dBm ... -8 dBm
- Input_sensitivity_MM: ≤ -32 dBm
- Input_sensitivity_SM: ≤ -34 dBm
- Commercial_temperature_range: 0°C ... +55°C
- Industrial_temperature_range: -40°C ... +70°C
- Storage_temperature_range: -40 °C ... +85 °C
- Relative_humidity_operation: 0% ... 95 % (non-condensing)
- Relative_humidity_storage: 0% ... 95 % (non-condensing)
- Air_pressure: 2000 m (795 hPa)
- Material_hoods_housings: Anodised aluminium
- Protection_class: IP 30
- Protection_class_III: III
