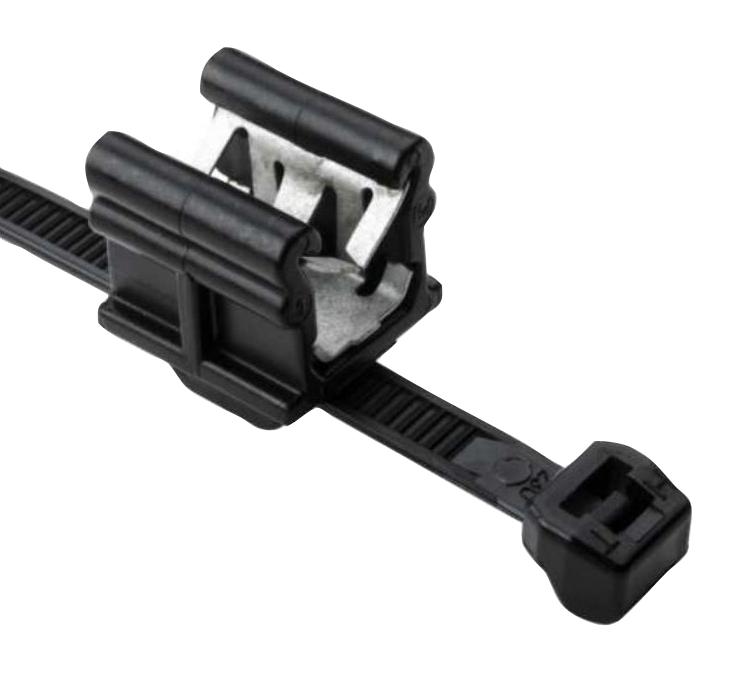

HellermannTyton 15600872 Edge Clip
The HellermannTyton T50ROSEC19 edge clip with cable tie is designed for securely fastening bundles to the edges of plastic or metal sheets without drilling holes. Made from high-impact, heat-stabilized polyamide 6.6 (PA66HS), it features a two-piece assembly system that allows the mount to slide along the strap for proper orientation. The clip ensures low insertion force but high extraction force, ideal for easy installation and reliable retention in various assembly environments. It supports bundle diameters from 2.0 to 4.5 mm, with an 8-inch cable tie, suitable for panel thicknesses up to 6 mm, and complies with UL 94 HB flammability standards.
HellermannTyton 15600872 Edge Clip Specifications:
- Material: Polyamide 6.6 heat stabilized (PA66HS)
- Color: Black
- Flammability: UL 94 HB
- Operating Temperature: -40°F to +221°F (-40°C to +105°C)
- Package Quantity: 500 pieces
- Length: 8.0 inches (200 mm)
- Width: 0.20 inches (5 mm)
- Height: 0.12 inches (3 mm)
- Panel Thickness Range: 3-6 mm
- Supported Bundle Diameter: 2-4.5 mm
- Minimum Tensile Strength: 50 lb (225 N)
- Releasable Closure: No
- Fixation Method: Edge clip with integrated metal clamp
- Outside Serrated Cable Tie & Edge Clip
Buy the Buy HellermannTyton Edge Clip Part Number 156-00872 Online
Secure bundles effortlessly with the HellermannTyton edge clip equipped with a durable cable tie. Designed for easy installation without drilling holes, it adapts to various panel thicknesses up to 6 mm. Made from high-impact, heat-stabilized polyamide, it provides high tensile strength and reliable retention. The 8-inch cable tie supports bundle diameters from 2 to 4.5 mm, making it ideal for electrical and mechanical assemblies. Easy to slide for proper alignment and compliant with UL 94 HB flammability standards, ensuring safety and durability.
Buy HellermannTyton 156-00872 edge clip with high impact PA66HS today and experience reliable bundling and fast installation for panel edge management.
Frequently Asked Questions
Where can I buy HellermannTyton 15600872?
You can click on the BUY or RFQ button to purchase 15600872 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 15600872?
You can download the 15600872 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 15600872?
HellermannTyton
