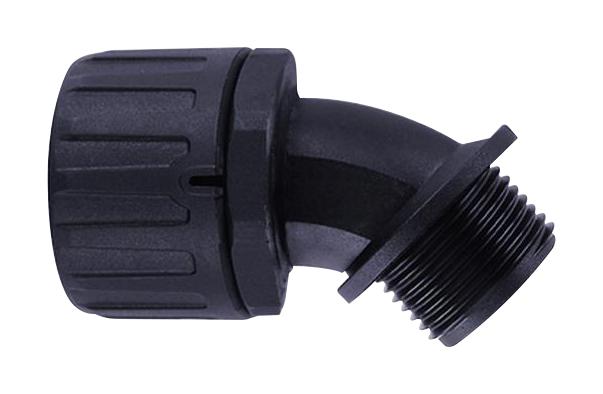

HellermannTyton 16690097 Conduit Elbow Fitting
The HellermannTyton 166-90097 is a highly durable 45° elbow conduit fitting made of black polyamide 6.6 (PA66), featuring a 1.5-inch diameter and NPT thread. It has a smooth, swept bore for easy cable installation, along with all-around teeth for a secure grip and high extraction force. Its one-piece construction includes an external NPT thread for quick attachment, with a length of 106mm and a bore diameter of 39mm. Suitable for harsh environments, it offers high resistance to salts, oils, acids, solvents, and operates from -50°C to +135°C. It is UL recognized, flammability rated UL94V2, and delivered in packs of two, ideal for industrial conduit systems.
HellermannTyton 16690097 Conduit Elbow Fitting Specifications:
- Material: Polyamide 6.6 (PA66)
- Color: Black
- Thread Type: NPT
- Trade Size: 1-1/2"
- Bore Diameter: 39.0mm (1.54")
- Length: 106mm (4.17")
- Overall Diameter: 76.0mm (2.99")
- Clestation Hole Diameter: 47.8mm (1.882")
- Operating Temperature Range: -50°C to +135°C (-58°F to +275°F)
- Ingress Protection: IP66
- Flammability: UL 94V2
- UL Recognized: Yes
- Quantity per pack: 2 pieces
- Conduit Thread: External NPT
- Construction: One-piece design
- Resistance: Salts, oils, weak acids, solvents
Buy the HellermannTyton Series HG150-45-1500 Conduit Fitting: 16690097
Enhance your electrical conduit system with the HellermannTyton Conduit Elbow Fitting. Crafted from durable PA66 nylon, this 45° elbow features a 1.5-inch NPT thread and an all-around gripping teeth design, ensuring a secure connection. Its IP66 rating guarantees ingress protection from dust and water, making it suitable for harsh environments. Easy to install and remove with a screwdriver, it operates within -50°C to +135°C and is UL recognized for safety standards. Delivered in packs of two, ideal for reliable, industrial electrical wiring solutions.
Buy HellermannTyton 166-90097 now and experience reliable secure connections with this durable, easy-to-install nylon conduit elbow for industrial applications.
Frequently Asked Questions
Where can I buy HellermannTyton 16690097?
You can click on the BUY or RFQ button to purchase 16690097 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 16690097?
You can download the 16690097 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 16690097?
HellermannTyton
