HellermannTyton 16690099 Elbow Fitting

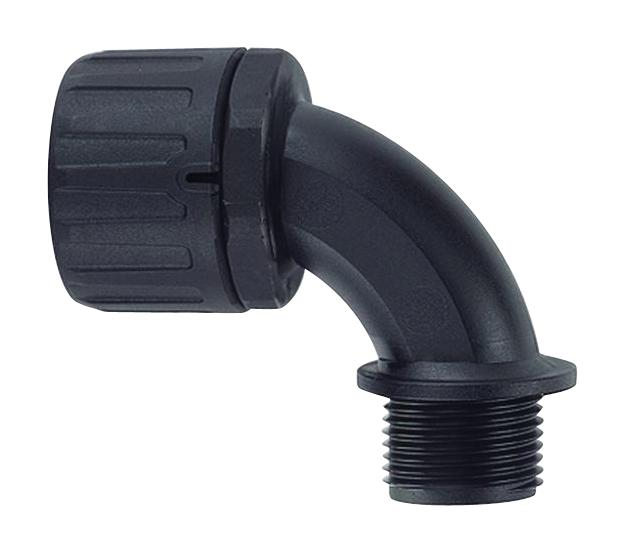

The HellermannTyton 166-90099 is a durable 90° elbow conduit fitting made of black polyamide 6.6 (PA66). It features an IP66 ingress protection rating, one-piece construction, and an external NPT thread for a secure connection. The fitting's smooth, swept bore simplifies cable installation, while all-around teeth ensure a strong attachment to conduit with high extraction force. Designed for easy removal with a small screwdriver, it measures 66mm in length, has a bore diameter of 19mm, and is suitable for 3/4 inch trade size. UL recognized, UL94V2 flammability rated, operating from -50°C to +135°C, ideal for industrial environments.
HellermannTyton 16690099 Elbow Fitting Specifications:
- Material: Polyamide 6.6 (PA66)
- Color: Black
- Protection Rating: IP66
- Dimensions: Length 66mm, Bore Diameter 19mm, Thread Length 15mm
- Thread Type: NPT, Trade Size: 3/4 inch
- Operating Temperature: -50°C to +135°C
- Flammability: UL 94 V-2
- All-around teeth for high attachment force
- Construction: One-piece design
- IP68 available with conduit seal for increased protection
- Easy removal with small screwdriver
- Pack Quantity: 10 pieces
Buy the HellermannTyton Series IP66 Fitting: 16690099
Purchase the HellermannTyton 166-90099 online for a reliable, durable elbow conduit fitting designed for quick, secure installations in industrial environments. Made of high-resistance polyamide 6.6, it features an IP66 protection rating, NPT external thread, and a smooth bore for cable ease. Its all-around teeth ensure a high attachment force to conduit, facilitating a firm, reliable connection. Perfectly suited for electrical and control systems, this UL-rated, flame-retardant fitting operates efficiently from -50°C to +135°C. Sold in packs of 10, it ensures quality and durability for demanding applications.
Get HellermannTyton 166-90099 today—built for secure connections, easy installation, and industrial durability.
Frequently Asked Questions
Where can I buy HellermannTyton 16690099?
You can click on the BUY or RFQ button to purchase 16690099 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 16690099?
You can download the 16690099 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 16690099?
HellermannTyton
