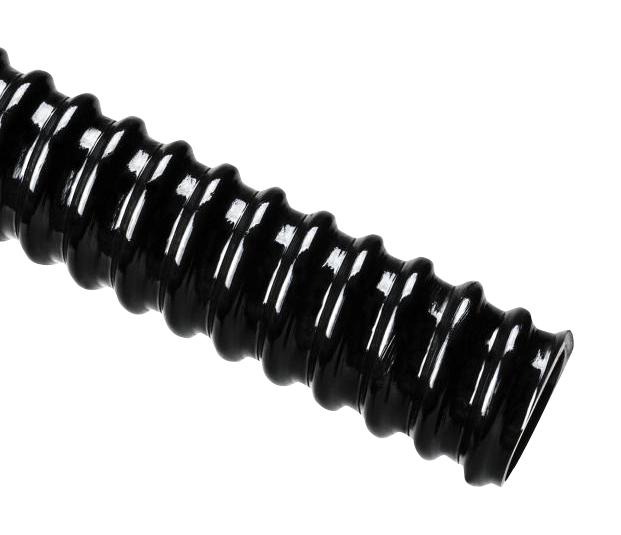

HellermannTyton 16690220 PVC Tubing
HelaGuard SR PVC tubing offers a lightweight, flexible solution for protecting wire and cable bundles in tight spaces. Made from spiral-reinforced PVC, it features a smooth bore to facilitate easy wire insertion and is UV resistant, making it suitable for outdoor applications. The tubing's spiral construction provides crush resistance while maintaining flexibility, reducing installation time and labor costs. It is UL Recognized, RoHS compliant, halogen-free, and operates within a temperature range of -4°F to +158°F, ensuring durability and safety in diverse environments.
HellermannTyton 16690220 PVC Tubing Specifications:
- Material: Polyvinylchloride PVC
- Color: Black
- Length: 100 ft / 30.5 m
- Inner Diameter: 0.48 inches / 12 mm
- Outside Diameter: 0.65 inches / 16.5 mm
- Trade Size: 3/8 inch
- Nominal Diameter: 3/8 inch / 16 mm
- Inside Bend Radius: 0.99 inches / 25 mm
- Flammability: Self-extinguishing according to EN IEC 61386
- Temperature Range: -4°F to +158°F / -20°C to +70°C
- UL Recognized: Yes
- RoHS Compliant: Yes
- Halogenfree: Yes
- Package Quantity: 100 ft reel
- Customs Schedule B: 3926909987
Buy the Buy Hellermanntyton PVC Tubing Part Number 16690220 Online
Order the Hellermanntyton PVC tubing online today to ensure reliable protection for your wire and cable bundles. This lightweight, ultra-flexible tubing features a smooth bore for easy wire insertion and a spiral reinforced structure for increased crush resistance. UV resistant and suitable for outdoor use, it operates across a temperature range of -4°F to +158°F. The tubing is UL Recognized, RoHS compliant, halogen-free, and comes in a convenient 100 ft reel, making installation quick and effective for demanding environments.
Buy Hellermanntyton 16690220 PVC tubing now and experience flexible wire protection with outdoor durability, UV resistance, and easy installation.
Frequently Asked Questions
Where can I buy HellermannTyton 16690220?
You can click on the BUY or RFQ button to purchase 16690220 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 16690220?
You can download the 16690220 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 16690220?
HellermannTyton
