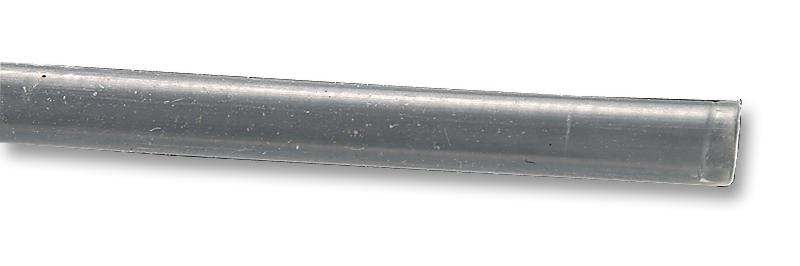

HellermannTyton 30030163 Heat Shrink Tubing
This heat shrinkable tubing offers excellent electrical insulation, corrosion resistance, and mechanical durability. Made from cross-linked polyolefin, it features a 2:1 shrink ratio, capable of operating between 55°C to 125°C. The tubing's thin-wall and flexible design make it suitable for diverse industrial wiring applications. Available in multiple sizes and colors, it ensures reliable protection for electrical contacts and connections. The product complies with UL and ASTM standards, providing high dielectric strength and flammability resistance, making it ideal for demanding environments.
HellermannTyton 30030163 Heat Shrink Tubing Specifications:
- Material: Cross-linked Polyolefin
- Shrink Ratio: 2:1
- Operating Temperature: 55°C to +125°C
- Dielectric Strength: 20kV/mm according to ASTM D2671
- Flammability: UL224 VW-1 (except clear), SAE AMS DTL-23053/5 Class 1 and 3
- Recovery Wall: varies by size, from 0.40 mm to 0.90 mm
- Length: 10 m or 5 m rolls depending on size
- Colors: Black, Red, Blue, Transparent, Yellow/Green
- Sizes: Ranging from 1.2 mm to 25.4 mm diameter
- Reel Length: from 5 m to 10 m depending on size
- Temperature Range: -55°C to +125°C
- Dielectric Strength: 20 kV/mm
- Certifications: UL, RoHS Compliant
- Product conforms to UL224, VW-1, and SAE AMS specifications.
Buy the HellermannTyton 30030163 – Reliable Heat Shrink Tubing for Industrial Applications
Purchase HellermannTyton heat shrink tubing online today for superior electrical insulation and mechanical protection. This flexible, cross-linked polyolefin tubing features a 2:1 shrink ratio, operating effectively between -55°C and +125°C. Suitable for diverse industrial uses, it provides excellent dielectric strength and corrosion resistance. Available in multiple sizes and colors, the tubing is easy to cut and install, ensuring reliable, long-lasting connections. Order now for quick delivery and ensure your electrical projects meet the highest safety standards.
Get HellermannTyton 30030163 today—built for precision and long-lasting durability in electrical insulation projects.
Frequently Asked Questions
Where can I buy HellermannTyton 30030163?
You can click on the BUY or RFQ button to purchase 30030163 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 30030163?
You can download the 30030163 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 30030163?
HellermannTyton
