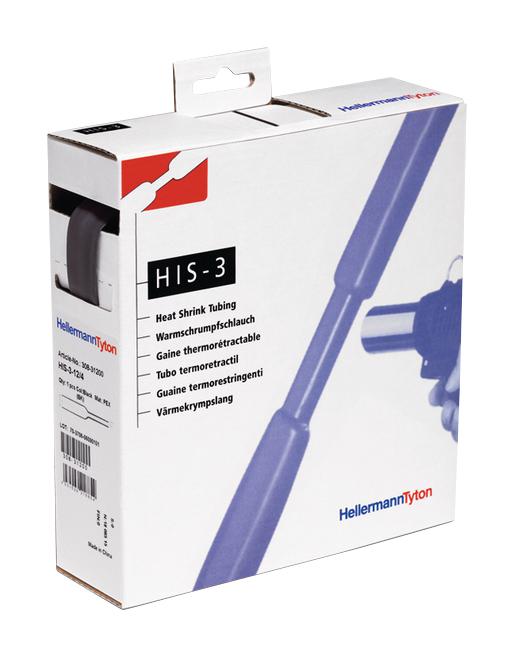

HellermannTyton 30030320 Heat Shrink Tubing
This heat shrinkable tubing is a versatile electrical insulation solution suitable for various applications. Made from cross-linked polyolefin, it offers excellent protection against corrosion, mechanical abrasion, and high temperatures from 55°C to 125°C. The tubing features a 2:1 shrink ratio, ensuring a snug fit around components. It is available in multiple sizes and colors, including black, blue, red, transparent, and yellow/green, on reels for easy handling. Its dielectric strength is 20 kV/mm, complying with UL224 VW-1 flammability standards, making it ideal for insulated wiring and electronic assemblies.
HellermannTyton 30030320 Heat Shrink Tubing Specifications:
- Material: Cross-linked Polyolefin (PO-X)
- Shrink Ratio: 2:1
- Operating Temperature: 55°C to +125°C
- Dielectric Strength: 20 kV/mm (according to ASTM D2671)
- Flammability: UL224 VW-1 (except clear)
- Available Sizes: from 1.2 mm to 25.4 mm on reels, with various lengths
- Colors: Black, Red, Blue, Transparent, Yellow/Green
- Reel Length: 5m to 10m depending on size
- Minimum Shrink Temperature: 100°C
- Maximum Operating Voltage: 600V to 1250V depending on size
- Certifications: RoHS compliant
- Design: Thin-wall, flexible with table application sizing
- Application: Insulation, corrosion, and mechanical protection for electrical wiring
- Temperature Resistance: -55°C to +125°C
- Dielectric Strength: 20 kV/mm
- Compliance: UL224 VW-1, SAE AMS DTL-23053/5 Class 1 and 3
- Standard: Meets specifications for general-purpose electrical insulation
- Physical Features: Cross-linked, withstands mechanical and environmental stress
- Availability: Dispenser boxes for easy on-site use
Buy the Buy HellermannTyton Heat Shrinkable Tubing Part Number 30030320 Online
Enhance your electrical insulation and protection with this high-quality heat shrink tubing. Easy to use with dispenser reels, it offers excellent flexibility, high dielectric strength, and thermal resistance. Perfect for insulation, corrosion prevention, and mechanical abrasion defense in electrical wiring and electronic assemblies. Available in multiple sizes and vibrant colors, this tubing simplifies your assembly process while ensuring compliance with safety standards. Shop online now to experience superior durability and performance in your electrical and industrial applications.
Buy HellermannTyton heat shrink tubing part 30030320 now for reliable insulation and mechanical protection in your electrical projects.
Frequently Asked Questions
Where can I buy HellermannTyton 30030320?
You can click on the BUY or RFQ button to purchase 30030320 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 30030320?
You can download the 30030320 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 30030320?
HellermannTyton
