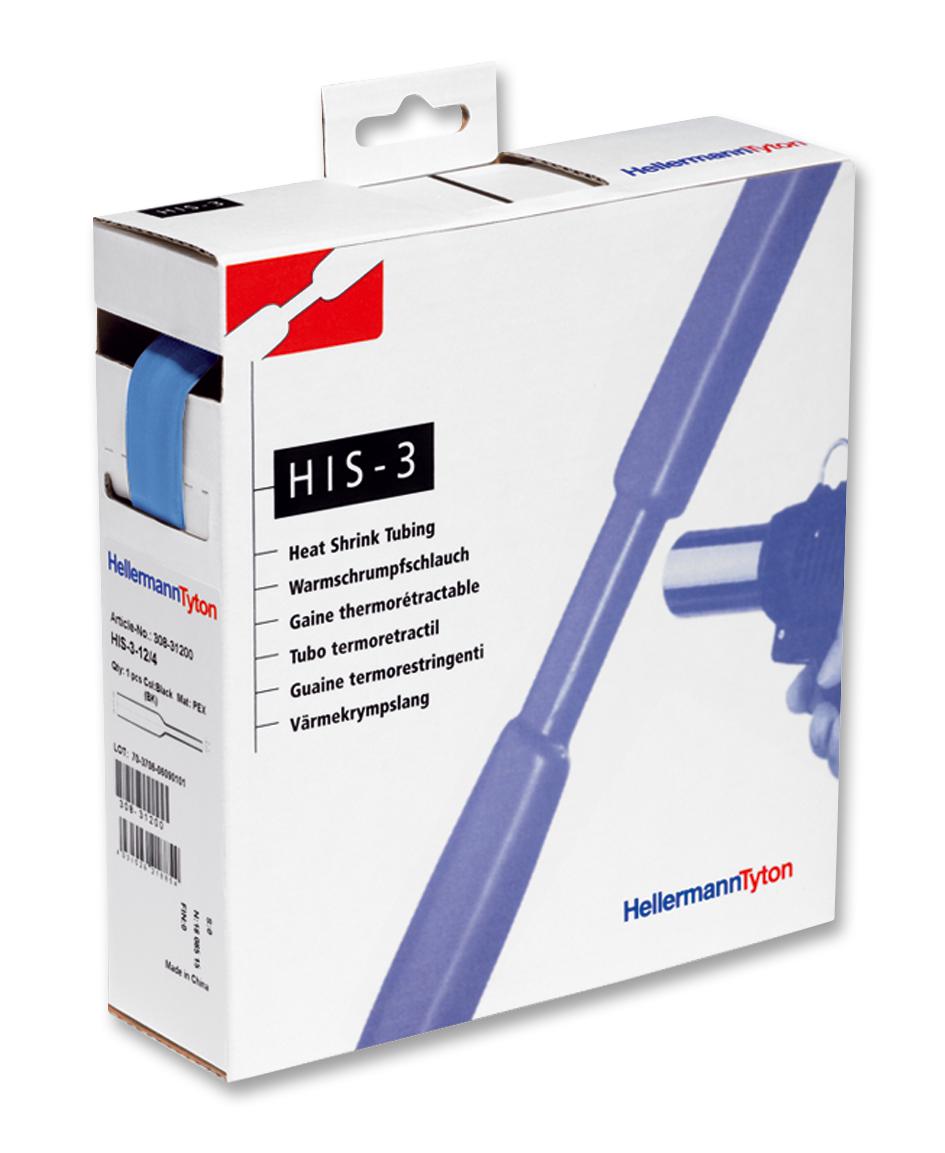

HellermannTyton 30830606 Heat Shrinkable Tubing
High-quality heat shrinkable tubing designed for electrical insulation in industrial applications, offering a 3:1 shrink ratio and excellent protection against corrosion and mechanical abrasion. Manufactured from cross-linked polyolefin, this tubing withstands temperatures from -55°C to +135°C, ensuring durability in varied environments. It features UL224 VW-1 flammability rating, dielectric strength of 20 kV/mm, and insulation class B. Available in multiple colors and sizes on reels, it simplifies inventory and installation for electrical wiring, cable harnessing, and insulation protection needs.
HellermannTyton 30830606 Heat Shrinkable Tubing Specifications:
- Material: Polyolefin, cross-linked (PO-X)
- Shrink Ratio: 3:1
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 100°C
- Dielectric Strength: 20 kV/mm according to ASTM D 150
- Flammability: UL224 VW-1 (except clear)
- Insulation Class: B (VDE 0530)
- Color Options: Black, Blue, Red, Transparent, Green-Yellow, etc.
- Dimensions: Diameter ranges from 0.45 mm to 8.0 mm in different sizes, lengths from 3 m to 10 m, wall thickness varies from 0.45 mm to 1.20 mm
- Wiring Compatibility: Suitable for wire ranges 0.5 mm to 8.0 mm diameter
- Certifications: UL, CSA, SAE - AMS - DTL-23053/5 Class 1 and 2, RoHS compliant
- Temperature Resistance: Up to 135°C
- Physical Properties: High recovery wall, longitudinal stability after shrinkage
Buy the HellermannTyton HIS-3 – Reliable Heat Shrinkable Tubing for Industrial Applications
Order HellermannTyton heat shrinkable tubing online today for efficient insulation, corrosion resistance, and mechanical protection in industrial wiring projects. Available in multiple sizes and colors, this tubing offers a reliable 3:1 shrink ratio, high dielectric strength, and excellent flame retardancy. Perfect for cable harnessing, electrical insulation, and mechanical protection in harsh environments, our tubing simplifies inventory management and installation. Experience quality, safety, and versatility—buy now and ensure long-lasting electrical system performance with ease and confidence.
Get HellermannTyton HIS-3 today—built for precision, durability, and versatile electrical insulation solutions.
Frequently Asked Questions
Where can I buy HellermannTyton 30830606?
You can click on the BUY or RFQ button to purchase 30830606 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 30830606?
You can download the 30830606 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 30830606?
HellermannTyton
