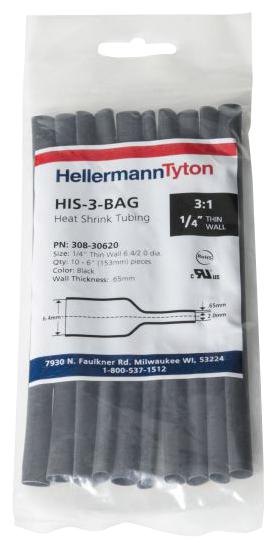

HellermannTyton 30830620 Heat Shrink Tubing
This heat shrink tubing from HellermannTyton features a flexible, thin-walled polyolefin material with a 3:1 shrink ratio, ideal for high heat and insulation applications. It meets UL224 VW-1 standards, offering excellent resistance to solvents, oils, and fuels. Suitable for small to large projects, it is available in bulk reels, sticks, and convenient bags. The tubing withstands high temperatures up to 212°F (+100°C), with a shrink temperature around above 212°F. It provides durable insulation, mechanical strength, and flame retardance, suitable for electrical and automotive uses.
HellermannTyton 30830620 Heat Shrink Tubing Specifications:
- Material: Polyolefin, cross-linked (PO-X)
- Material Shortcut: POX
- Shrink Ratio: 3:1
- Nominal Diameter: 6.4 mm (1/4 inch)
- Recovered Diameter: 6.4 mm (0.25 inch)
- Supplied Diameter: 6.4 mm (0.25 inch)
- Wall Thickness: 2.0 mm
- Length: 200 mm (8 inches)
- Color: Black
- Dielectric Strength: 20 kV/mm according to ASTM D 150
- Elongation at Break: 800% (ASTM D2671)
- Operating Temperature: -67°F to +275°F (-55°C to +135°C)
- Flammability: Meets UL224 VW-1 specifications
- Halogen-Free: Yes
- Shrink Temperature: Typically above 212°F (+100°C)
- Volume Resistance: 1011 Ohm cm (ASTM D 876)
- Certifications: UL Listed and Recognized, ROHS Compliant
Buy the HellermannTyton Series HIS-3 Heat Shrink Tubing: 308-30620
Secure your electrical and automotive projects with HellermannTyton's high-quality heat shrink tubing. This flexible polyolefin tubing with a 3:1 shrink ratio offers excellent insulation, mechanical strength, and flame retardance. Designed to withstand temperatures up to 275°F, it resists oils, fuels, and solvents, making it ideal for demanding environments. Available in convenient sizes, reels, and bags, order online today to benefit from quick delivery and premium product reliability for all your insulation needs.
Order your HellermannTyton Series HIS-3 308-30620 heat shrink tubing today and ensure reliable insulation for your high-temperature and solvent-resistant projects.
Frequently Asked Questions
Where can I buy HellermannTyton 30830620?
You can click on the BUY or RFQ button to purchase 30830620 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 30830620?
You can download the 30830620 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 30830620?
HellermannTyton
