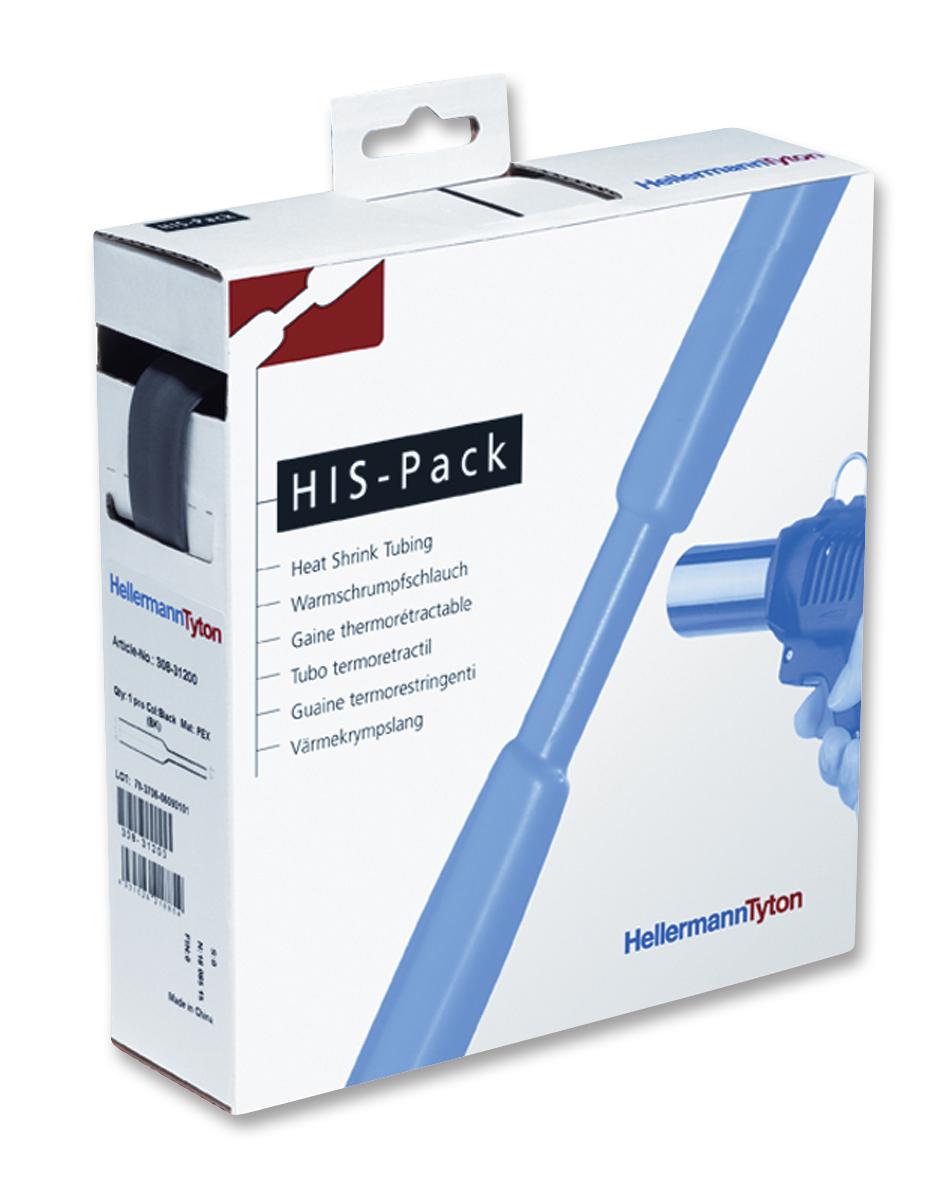

HellermannTyton 30831200 Heat Shrink Tubing
The Heat Shrinkable Tubing 3:1 on a Reel is a versatile electrical insulation solution offering high protection against corrosion and mechanical abrasion. Made from cross-linked polyolefin, it shrinks to 1/3 of its original size, providing secure insulation for various substrate dimensions. Suitable for applications requiring -55°C to +135°C temperature range, it features a dielectric strength of 20 kV/mm and UL224 VW-1 flammability rating. Available in multiple sizes, colors, and lengths for easy inventory management and reliable electrical protection.
HellermannTyton 30831200 Heat Shrink Tubing Specifications:
- Material: Polyolefin, cross-linked (PO-X)
- Shrink Ratio: 3:1
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 100°C
- Dielectric Strength: 20 kV/mm (ASTM D 150)
- Flammability: UL224 VW-1 (except clear)
- Insulation Class: B (VDE 0530)
- Recovery Wall Thickness: varies by size, typically 0.45 to 1.20 mm
- Lengths: 3m to 10m reels depending on size
- Color Options: Black, Blue, Red, Green-Yellow, Transparent
- Application diameters: 1 mm up to 20 mm
- Certifications: UL, CSA, SAE AMS DTL-23053/5 Class 1 and 2, RoHS
Buy the HellermannSeries HIS Series Heat Shrinkable Tubing: 30831200
Order Hellermann Series HIS heat shrink tubing online today for superior electrical insulation and mechanical protection. Available in various sizes, colors, and lengths, this versatile 3:1 shrink ratio tubing ensures quick, secure fits for highly variable substrate dimensions. Made from cross-linked polyolefin, it withstands temperatures up to +135°C and features excellent dielectric strength, flame resistance, and certification compliance. Ideal for electrical and electronic applications, buy online now to enjoy fast delivery, quality assurance, and durable performance for your insulation needs.
Get Hellermann Series HIS 3:1 heat shrink tubing today—designed for reliable insulation, high dielectric strength, and long-lasting durability.
