HellermannTyton 30831802 Shrink Tubing
HIS-3 is a cross-linked polyolefin shrink tubing designed for electrical insulation and protection in various applications. It features a 3:1 shrink ratio, withstands temperatures from -55°C to +135°C, and offers excellent dielectric strength of at least 20 kV/mm. The tubing has high tensile strength and elongation at break, along with superior heat aging, heat shock, and low-temperature flexibility ratings. Available in multiple colors including black, red, blue, clear, and green/yellow, it is UL224 VW-1 rated with an isolation class B, ensuring reliable performance and safety in demanding environments.
HellermannTyton 30831802 Shrink Tubing Specifications:
- Base Material: Polyolefin, cross-linked (POX)
- Shrink Ratio: 3:1
- Continuous Operating Temperature: -55°C to +135°C
- Shrink Temperature: +100°C
- Dielectric Strength: min. 20 kV/mm ASTM D 150
- Tensile Strength: min. 14 MPa ASTM D 2671
- Elongation at Break: 800% ASTM D 2671
- Water Absorption: max. 0.15% ASTM D 570
- Flammability: VW-1 UL224
- Inner Diameter Range: 1.50 mm to 24.00 mm
- Wall Thickness: 0.45 mm to 1.20 mm
- Color Options: Black, Red, Blue, Clear, Green/Yellow
- Temperature Resistance: -55°C to +135°C
- Certifications: UL224 125°C 600V VW-1, SAE-AMS-DTL-23053/5, B (VDE 0530)

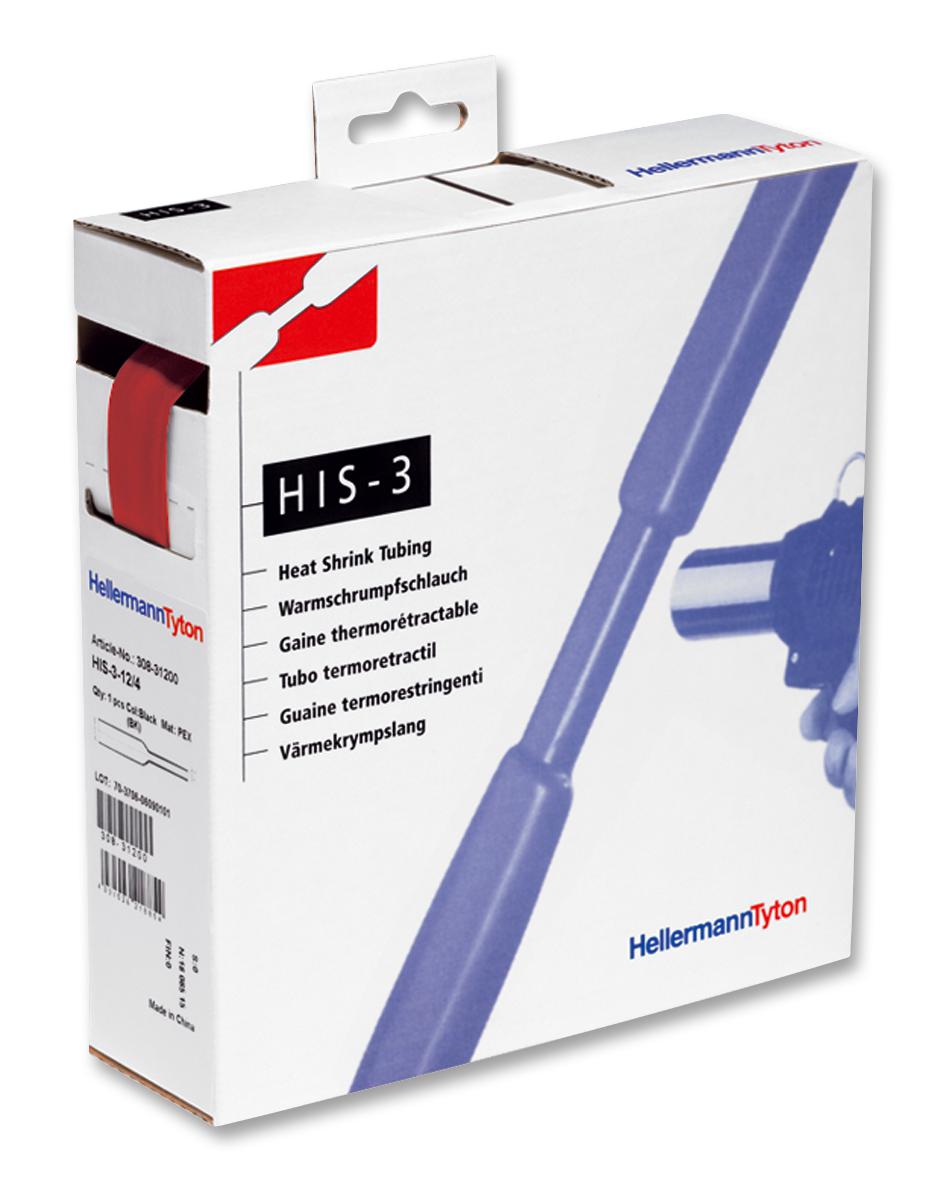

Buy the Buy HellermannTyton HIS-3 Part Number 30831802 Online
Purchase the high-quality HellermannTyton HIS-3 shrink tubing online for your electrical and insulation needs. This cross-linked polyolefin tube features a 3:1 shrink ratio, withstands temperatures up to 135°C, and offers excellent dielectric strength of 20 kV/mm. Its flexible design ensures reliable performance in demanding conditions, providing effective protection against environmental factors. Available in multiple colors, it meets UL and VDE standards, making it suitable for various industrial and electrical applications. Buy now and upgrade your project’s safety and durability.
Order your HellermannTyton HIS-3 resistant shrink tubing today and ensure reliable insulation with superior temperature and electrical performance.
Frequently Asked Questions
Where can I buy HellermannTyton 30831802?
You can click on the BUY or RFQ button to purchase 30831802 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 30831802?
You can download the 30831802 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 30831802?
HellermannTyton
