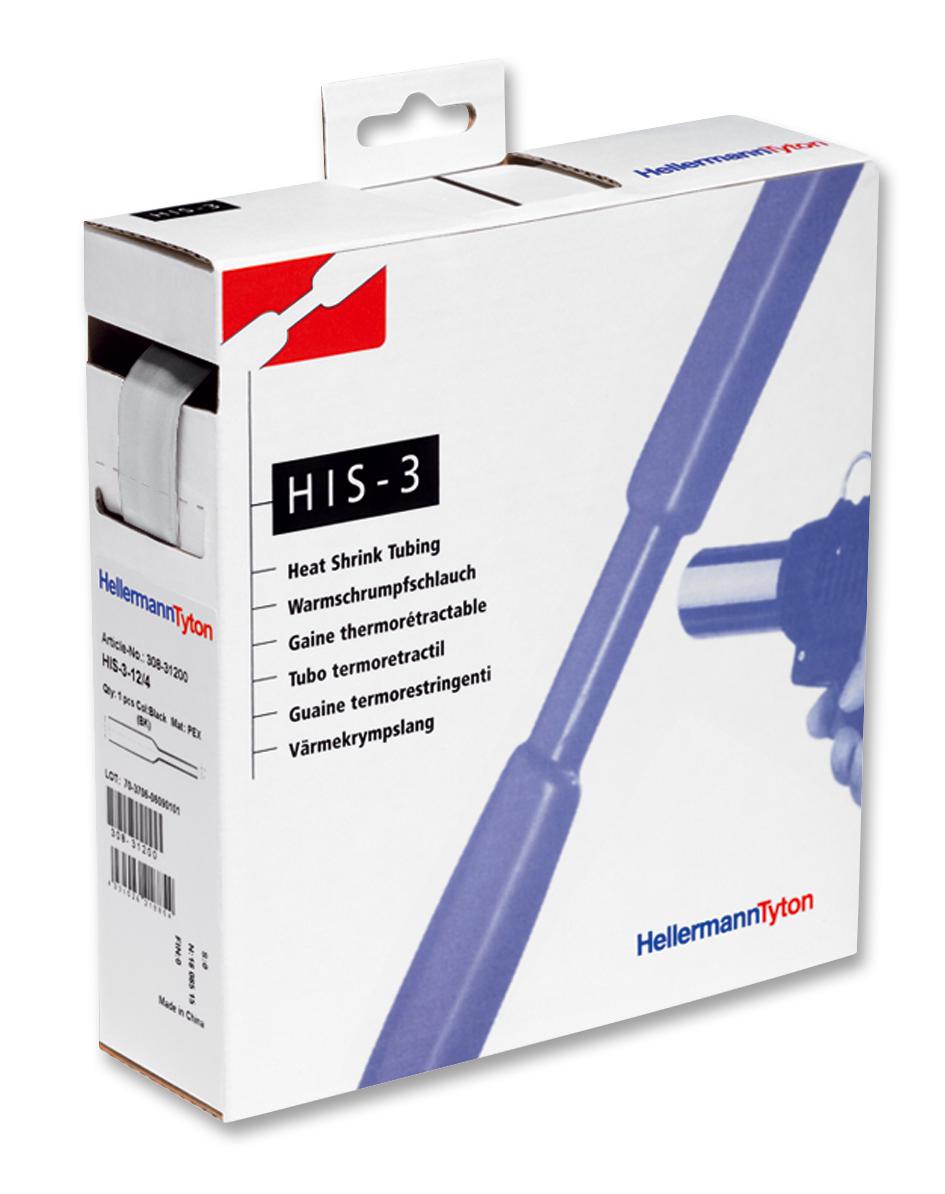

HellermannTyton 30832403 Heat Shrink Tubing
The Heat Shrinkable Tubing 3:1 offers versatile electrical insulation with high protection against corrosion and mechanical abrasion, suitable for a wide range of substrates. Made from cross-linked polyolefin, it features a high shrink ratio of 3:1, with an operating temperature of -55°C to +135°C, and dielectric strength of 20 kV/mm. Available in multiple sizes, colors, and lengths on reels, it simplifies inventory management while providing reliable insulation for electrical and electronic applications, meeting UL, CSA, and other industry standards.
HellermannTyton 30832403 Heat Shrink Tubing Specifications:
- Material: Cross-linked polyolefin
- Shrink Ratio: 3:1
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 100°C
- Dielectric Strength: 20 kV/mm according to ASTM D 150
- Flammability: UL224 VW-1 (except clear)
- Insulation Class: B (VDE 0530)
- Wall Thickness: Variants from 0.45 mm to 1.20 mm depending on size
- Color: Black, Blue, Red, Green-Yellow, Transparent
- Lengths: 3 m to 10 m reels depending on size
- Supply: Supplied on reels with flexible length options
- Applicable Standards: UL, CSA, SAE - AMS - DTL-23053/5 Class 1 and 2
- Dimensions: Inner diameter from 0.45 mm to 8.0 mm, outer diameter up to 24 mm
- Temperature Range: -55°C to +135°C
- Application: Electrical insulation, corrosion protection, mechanical abrasion resistance
Buy the HellermannTyton Series HIS-3 Heat Shrinkable Tubing: 30832403
Enhance your electrical projects with HellermannTyton's HEAT SHRINK TUBING 3:1, offering superior insulation, corrosion resistance, and mechanical protection. Designed from cross-linked polyolefin, it provides reliable performance across a temperature range of -55°C to +135°C. Available in various sizes, lengths, and colors on reels, it simplifies inventory and offers quick application for electronics, automotive, and industrial uses. Complying with UL, CSA, and industry standards, this tubing ensures safety, efficiency, and long-lasting durability for all your insulation needs.
Get HellermannTyton HIS-3 30832403 today—built for precise insulation and durability in demanding electrical environments.
Frequently Asked Questions
Where can I buy HellermannTyton 30832403?
You can click on the BUY or RFQ button to purchase 30832403 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 30832403?
You can download the 30832403 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 30832403?
HellermannTyton
