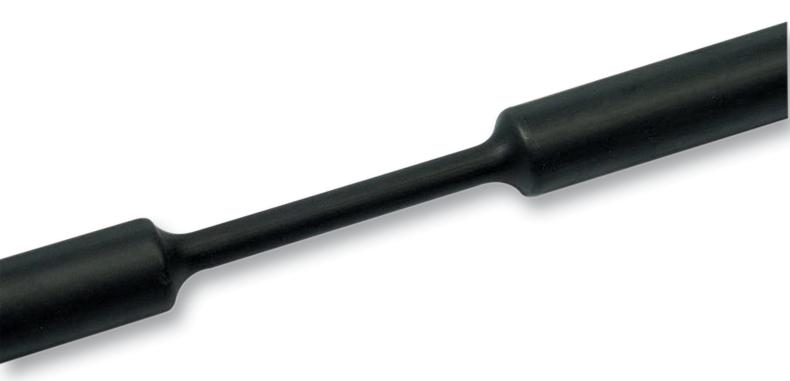

HellermannTyton 31900600 Thin Wall Heat Shrink Tubing
HELLERMANNTYTON TREDUX thin wall heat shrink tubing offers a flexible and reliable solution for electrical insulation and mechanical protection. Constructed from crosslinked polyolefin, this tubing features a 3:1 shrink ratio, ensuring a tight and secure fit. Available in various sizes and colors, including black and green/yellow, it's suitable for a wide range of applications, from general electrical work to more demanding industrial environments. The tubing's thin wall design allows for easy application and minimizes bulk, while its robust construction provides long-lasting protection against abrasion, chemicals, and extreme temperatures.
HellermannTyton 31900600 Thin Wall Heat Shrink Tubing Specifications:
- Material: Polyolefin, cross-linked (POX)
- Shrink Ratio: 3:1 (1.5 / 0.5 mm to 24 / 8 mm), 2:1 (38.1/19.1 mm to 101.6 / 50.8 mm)
- Minimum Shrink Temperature: +90 °C
- Operating Temperature: -55 °C to +125 °C
- Dielectric Strength: 20 kV/mm
- Flammability: ASTM D2671
- Article-No: 319-00150, 319-00157, 319-00300, 319-00307, 319-00600, 319-00607, 319-01200, 319-01207, 319-02400, 319-02407, 319-03800, 319-03807, 319-05100, 319-07600, 319-10200
- Color: Black (BK), Green-Yellow (GNYE)
- Pack Cont. (piece/1m): 20, 15, 10, 5, 6, 3, 2
- Recov. Ø d: 0.5, 1.0, 2.0, 4.0, 8.0, 19.1, 25.4, 38.1, 50.8
- Supplied Ø D: 1.5, 3.0, 6.0, 12.0, 24.0, 38.1, 50.8, 76.2, 101.6
- Wall (WT) nom: 0.50, 0.60, 0.70, 0.85, 1.20, 1.02, 1.14, 1.27, 1.40
Buy the 319-00600 HELLERMANNTYTON Thin Wall Heat Shrink Tubing | myMectronic
Purchase the HELLERMANNTYTON 319-00600 heat shrink tubing securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy HellermannTyton 31900600?
You can click on the BUY or RFQ button to purchase 31900600 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 31900600?
You can download the 31900600 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 31900600?
HellermannTyton
