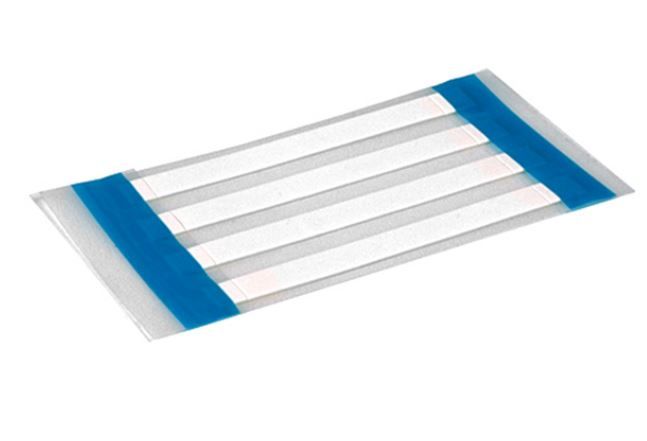

HellermannTyton 55350078 Heat Shrink Labels
HellermannTyton's 553-50078 Heat Shrink Labels are 0.125 inches wide, single-sided, with a 3:1 shrink ratio, ideal for wire marking. Made from cross-linked polyolefin (PO-X), they feature a smooth surface for clear printing and slide/slit options for easy wire insertion. Supplied on a ladder carrier, these labels allow efficient sorting and application, saving time and labor during wiring tasks. Suitable for electrical identification, they are MILSPEC AMS-DTL-23053/5 Class 1 and 3 compliant, with excellent dielectric strength and high-temperature resistance up to 275°F (135°C). Pack of 2,500 labels.
HellermannTyton 55350078 Heat Shrink Labels Specifications:
- Material: Polyolefin, cross-linked (PO-X)
- Shrink Ratio: 3:1
- Width: 0.125 inches (3.17mm)
- Length: 1.9 inches (48.3mm)
- Height: 0.235 inches (5.97mm)
- Maximum Diameter: 0.125 inches (3.2mm)
- Wall Thickness: 0.0209 inches (0.53mm)
- Dielectric Strength: 19.7 KV minimum
- Flammability: UL 224 VW-1
- Shrink Temperature: +194°F (+90°C)
- Operating Temperature Range: -55°C to +135°C
- Material: Cross-linked polyolefin (PO-X)
- US MILSPEC: AMS-DTL-23053/5 Class 1 and 3
- Package Quantity: 2500 labels
Buy the Buy HellermannTyton Heat Shrink Labels Part Number 55350078 Online
Order HellermannTyton 553-50078 heat shrink labels today and benefit from high-quality wire markers that ensure clear, durable identification. Made of cross-linked polyolefin, these labels offer a 3:1 shrink ratio, excellent thermal resistance, and UL flammability rating. Supplied on a ladder carrier for easy sorting and application, they are MILSPEC compliant for demanding environments. Perfect for electrical wiring, these labels resist high temperatures up to 275°F, provide high dielectric strength, and come in a convenient pack of 2,500 for large-scale projects or maintenance work.
Buy HellermannTyton 553-50078 heat shrink labels now and enhance your wiring identification with reliable, easy-to-apply heat shrinkable markers.
Frequently Asked Questions
Where can I buy HellermannTyton 55350078?
You can click on the BUY or RFQ button to purchase 55350078 from an authorized HellermannTyton distributor.
How do I troubleshoot issues or seek technical support for part 55350078?
You can download the 55350078 datasheet or visit the HellermannTyton website for support.
Who is the manufacturer of 55350078?
HellermannTyton
